iPhone 13 Charge Port Removal

Caution: Before starting this repair, discharge your iPhone battery below 25%. Accidentally puncturing a charged lithium-ion battery can cause it to catch fire and/or explode.

Turn your iPhone off before beginning this repair.

Start by ejecting your SIM card tray. Use a SIM card eject tool or a paperclip and insert it into the small hole. The SIM tray holder is located on the same side of the phone as the volume buttons.

Make sure your SIM card is in the correct way round when re-inserting.

There's a thin rubber gasket around the SIM tray that provides protection against water and dust. Make sure to replace the gasket if it is damaged or missing, or buy a new SIM entirely.

At the bottom of the iPhone, unscrew and remove the two pentalobe screws.

2x Pentalobe Screws

When you open the iPhone's display it will compromise its waterproof seals. Make sure you have replacement seals ready before continuing with this guide, or take care when reassembling your phone to avoid liquid exposure.

We're heating our iPhone at 100 degrees celsius using the Forward FW-360 heater. If you don't have a suitable heater, you can purchase yours here.

Leave the phone to heat up for a maximum of 2-3 minutes.

By heating the phone you will be softening the adhesive that is holding the LCD screen to the phone, and thus making it easier to open.

Apply your suction cup to the bottom edge of your phone. Don't place it too far down though, avoid putting it at the very edge of the glass. If you don't have a suction cup, you can purchase yours here.

If you have a severely cracked screen, you may have trouble mounting the suction cup. You can combat this by covering the screen with tape and mounting the suction cup to the tape.

Pull the suction cup away from the phone, this will create a gap between the front panel and rear case.

If you're struggling to create the gap, it might be due to the phone having cooled down. Heat the phone up and try again, the watertight adhesive holding the screen down is very strong so this may take time to slowly weaken the adhesive enough to create an opening.

Using a pry tool or plastic card, begin prying the bottom edge of the phone open. You can use some IPA to help loosen the screen if you're struggling.

Continue prying the phone open along the left and right side.

Be careful not to insert your prying tool too far into the phone, a few millimiteres will be enough. You risk damaging the cables connecting the screen if you insert the pry tool too far.

Once most of your screen has come loose, remove your suction cup and begin prying the screen off with your hands. With a small amount of force, the screen should come free from the adhesive. Your phone should open like a book.

Make sure you are opening the phone from the right side. The left side has a few fragile cables that connect the screen to the iPhone logic board.

Use your suction cup or another object to prop your screen up while you're disconnecting it in the next steps.

If reassembling, check out our iPhone 13 screen replacement guide here where we show you how to properly reassemble your iPhone screen. Skip to step 22 for reassembly instructions.

There are three screws holding the battery and display connector cover down. You'll need to remove these.

3x Phillips Screws

If reassembling, this point is a great time to quickly power your iPhone on and check that everything is working correctly.

Once you've removed the screws, remove the cover.

Use a spudger and pry the battery connector up from its socket on the logic board. Make sure your spudger is clean.

If you don't have a spudger, you can use your fingernails, but make sure they're clean.

The black silicone seal surrounding this connection and others act as extra protection against water and dust so be careful and try not to damage them.

Bend the connector away from it's connection socket to fully disconnect it.

Disconnect the display cable with a spudger or fingernail.

Remove the three screws holding the connector cover in place.

1x Tri-point screw

2x Phillips screws

Take caution when removing the cover, there's a small clip on the left side that hooks the cover down. Unhook it and then remove.

When reassembling, don't forget to clip the cover back in before screwing it back down.

Disconnect the front sensor assembly cable connector with a spudger or your fingernail.

Pull the display assembly away from the phone.

Using a screwdriver, remove four screws that are securing the loudspeaker down.

4x Phillips Screws

Use a pair of tweezers or your fingers to remove the loudspeaker.

Using a screwdriver, remove two screws securing the taptic engine connector cover.

2x Phillips Screws

Using tweezers or your fingers, remove the remove the taptic engine cable connector bracket

Using the tip of a spudger or tweezers, pry the Taptic Engine flex out of its socket.

Using a screwdriver, remove the one screw securing the taptic engine.

1x Phillips Screw

Using tweezers or your fingers, remove the taptic engine.

Using a screwdriver, remove the three screws securing the SIM card reader down.

2x Convex Cross Screws

1x Phillips Screw

Disconnect the sim reader flex from it's socket.

IMPORTANT DISCLAIMER: This guide has been made with a UK iPhone 13 Model A2633. If you are not from the UK you may have a different model which will have a 5G cable soldered to the back of your motherboard and runs underneath the battery.

To avoid damaging the cable you will need to remove the battery before you remove the motherboard and then disconnect the 5G cable. You can then continue following this guide. To remove your iPhone 13 battery, follow this guide here.

To remove the sim reader you first need to use tweezers to push the sim reader release catch down.

Using tweezers or your fingers, remove the SIM card reader.

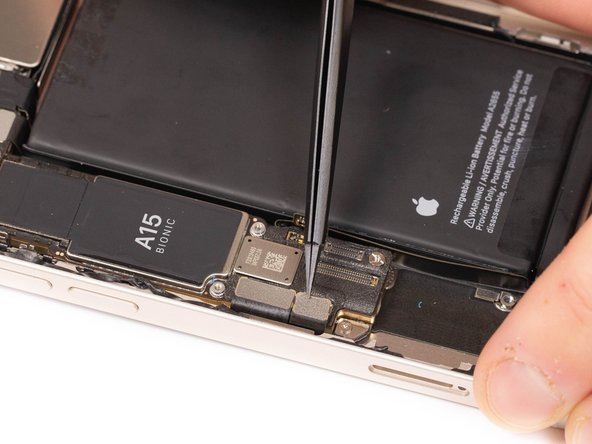

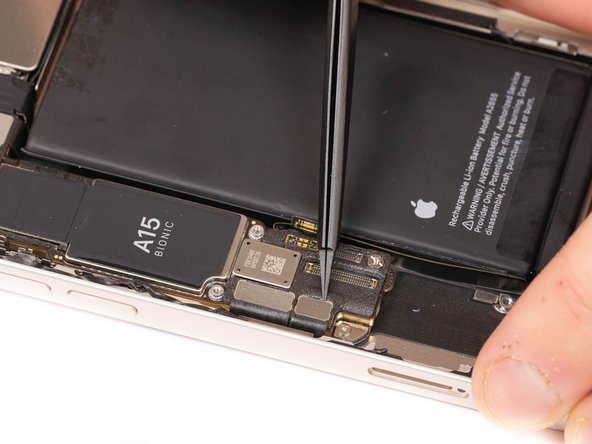

Disconnect the first charge port flex from it's socket.

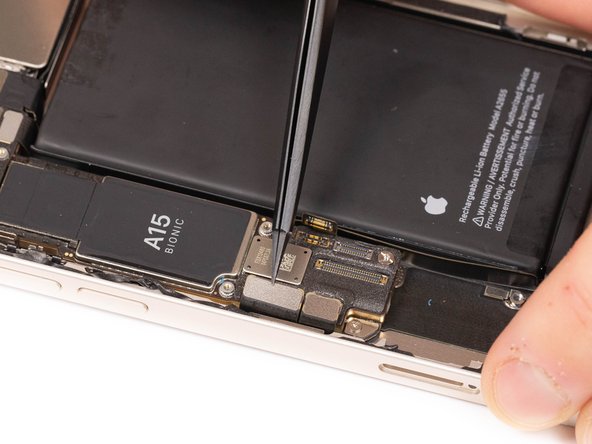

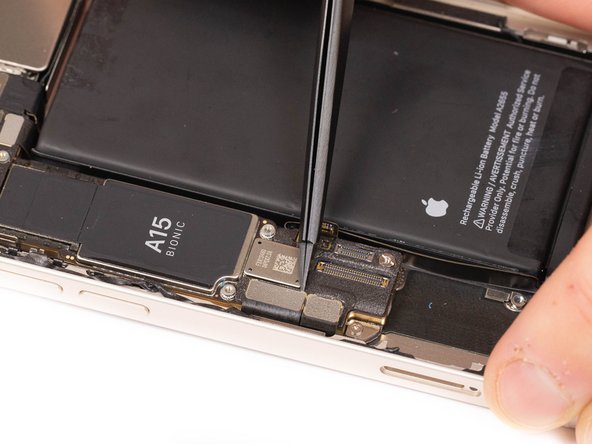

Disconnect the second charge port flex from it's socket.

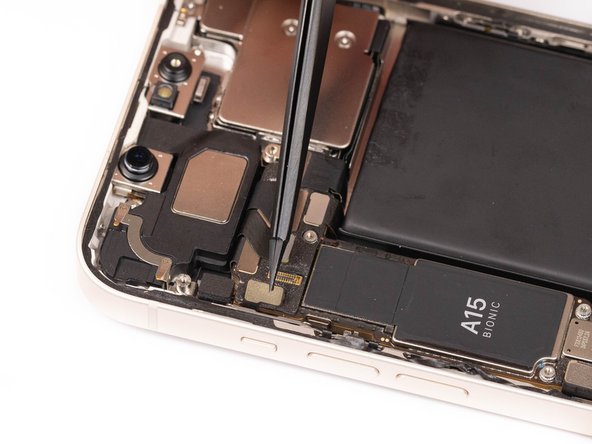

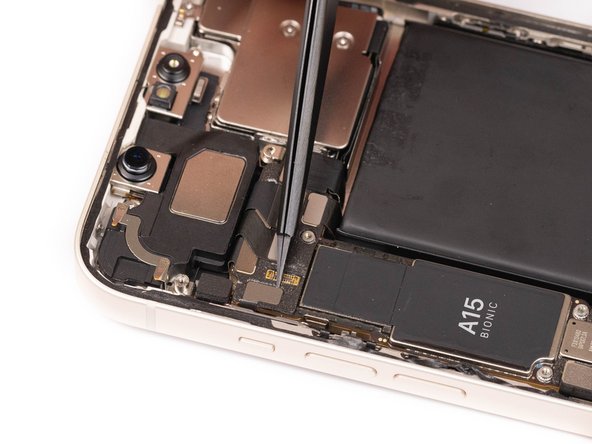

Disconnect the power volume NFC flex from it's socket.

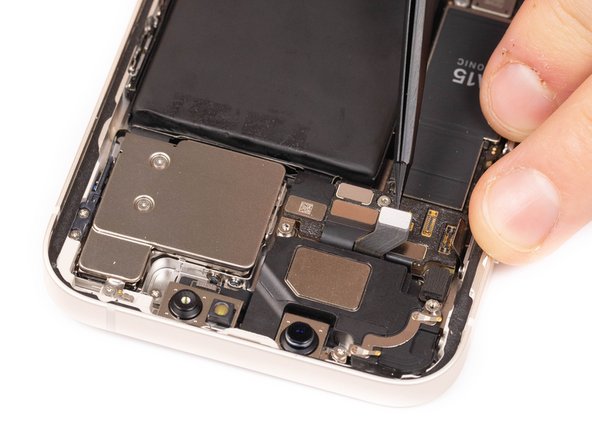

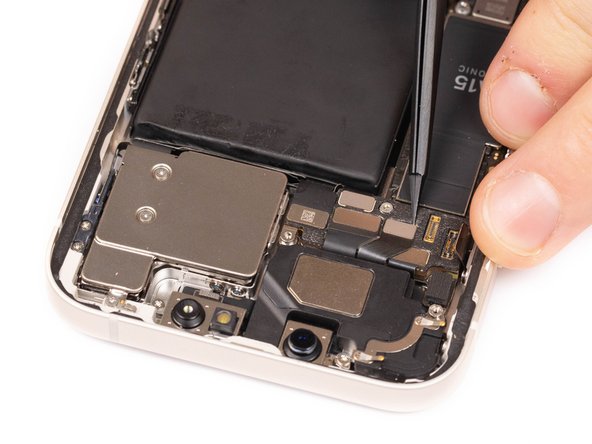

Disconnect the front camera flex.

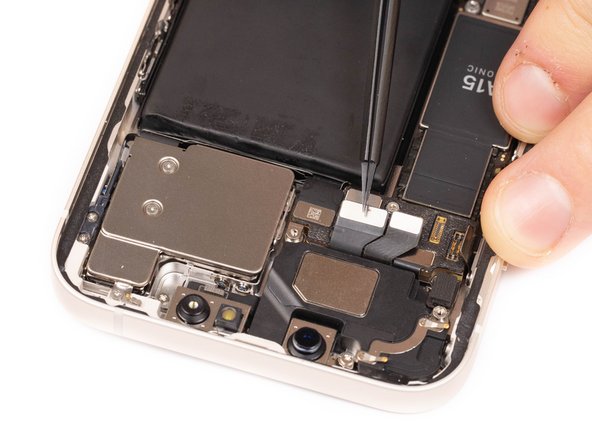

Disconnect the face ID flex from it's socket.

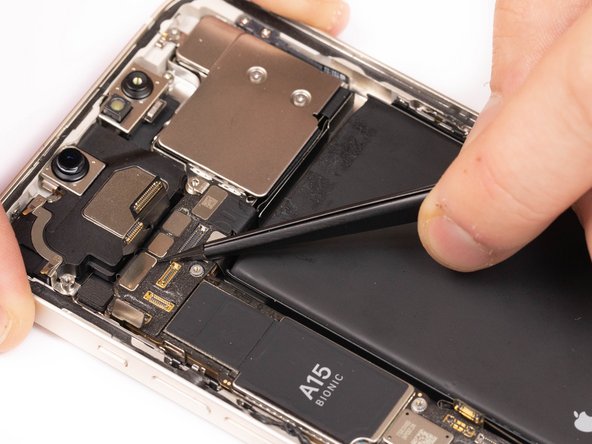

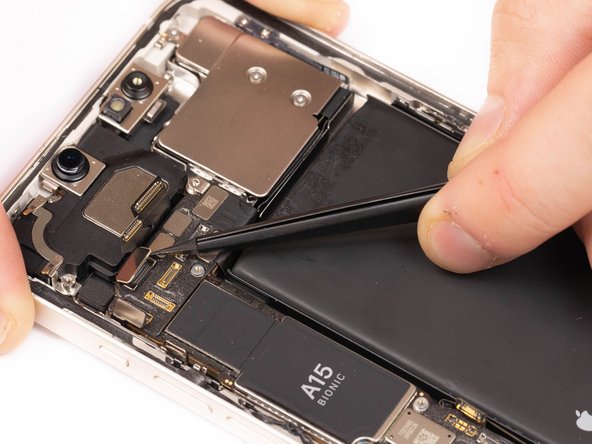

Disconnect the bluetooth antenna flex from it's socket.

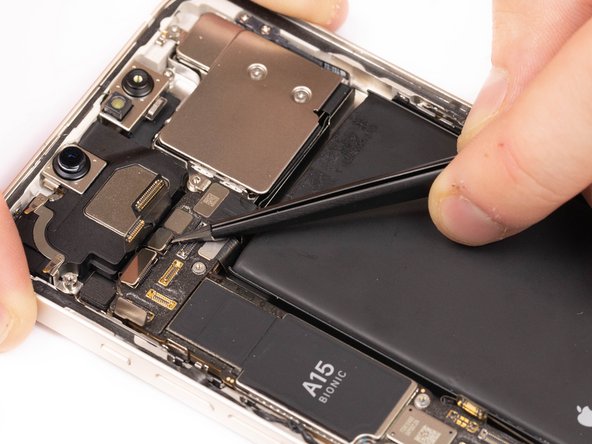

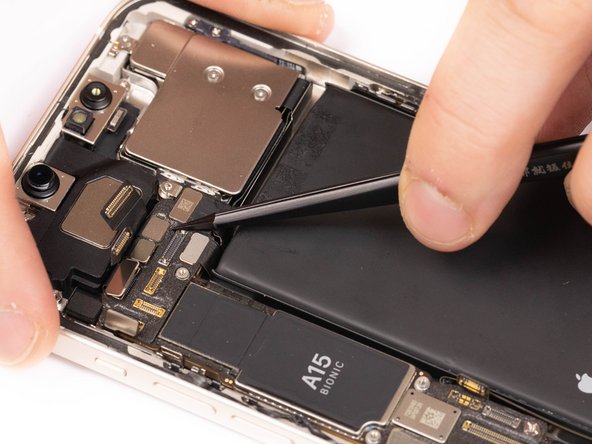

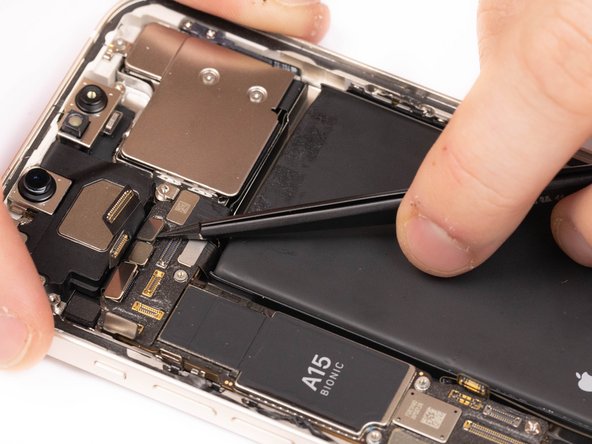

Disconnect another flex from it's socket on the motherboard.

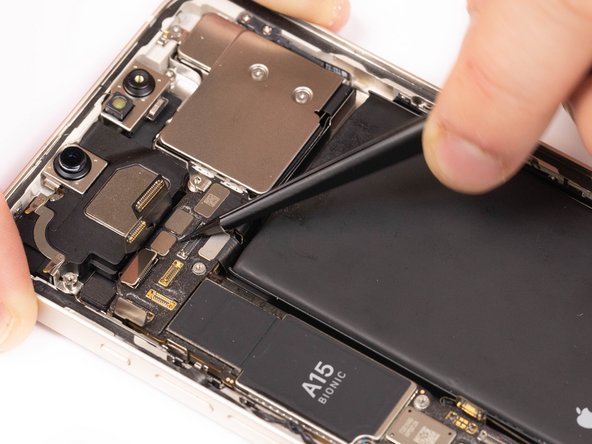

Disconnect another flex from it's socket on the motherboard.

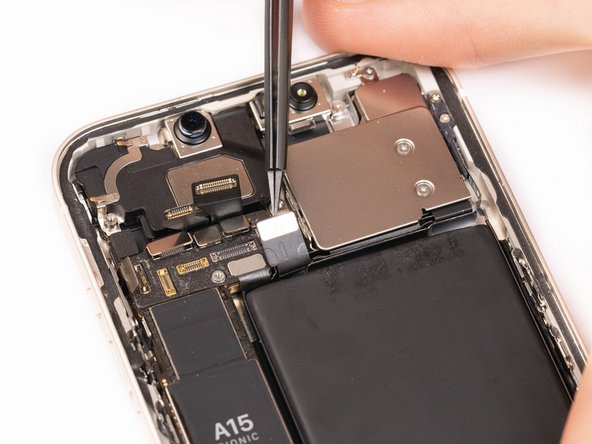

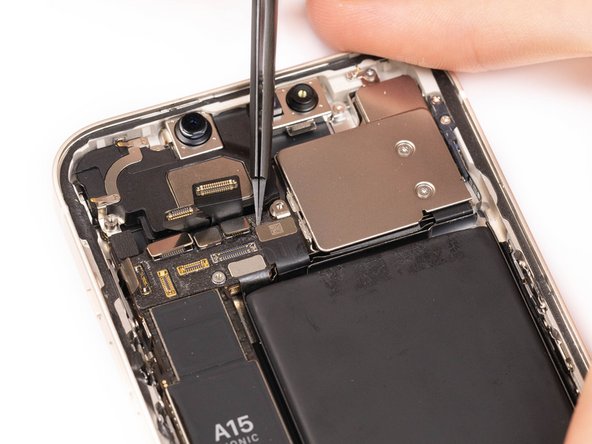

Disconnect the first rear camera flex from it's socket.

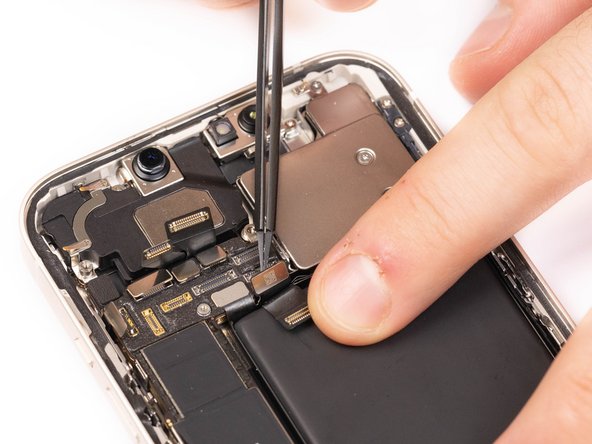

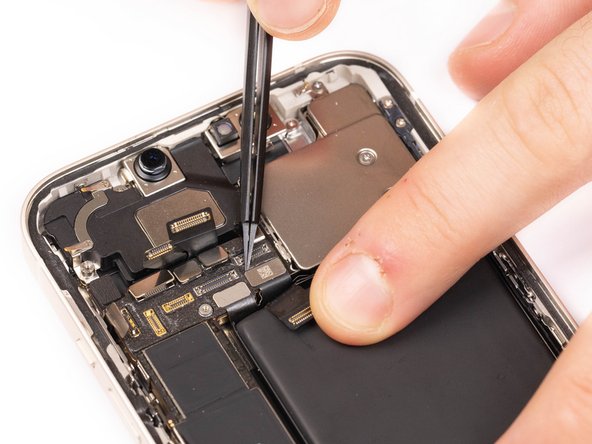

Disconnect the second rear camera flex from it's socket.

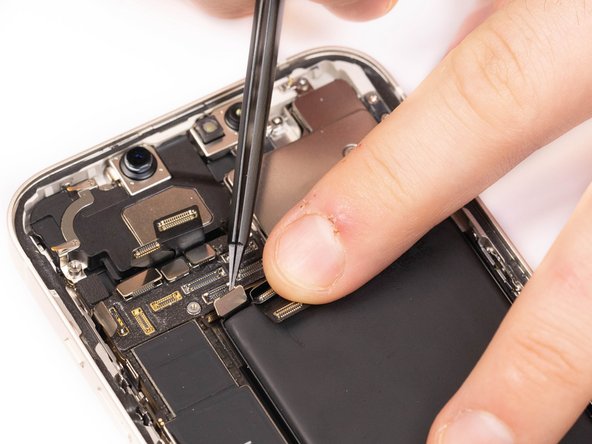

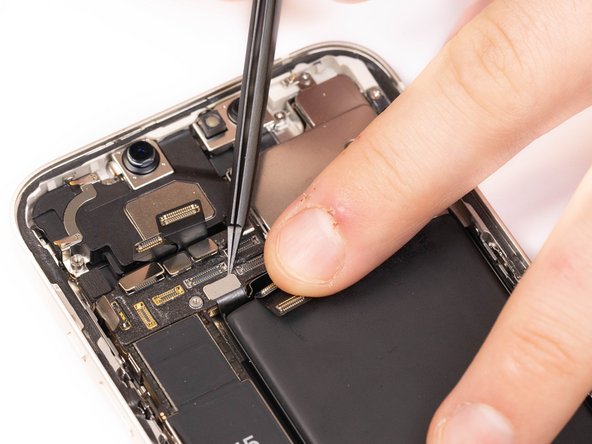

Disconnect the rear mic flex from it's socket.

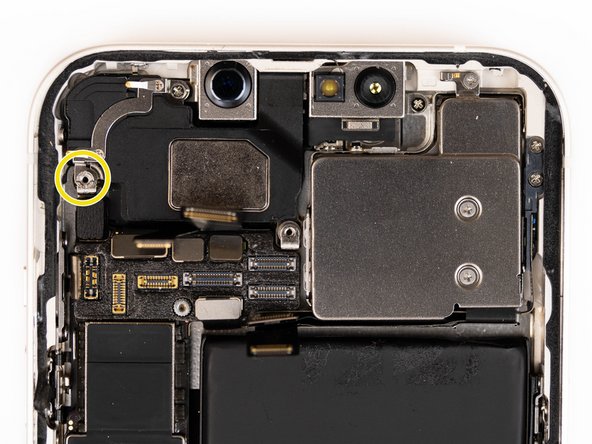

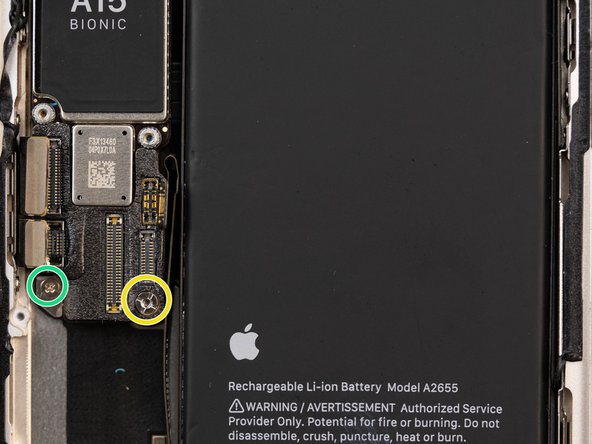

Remove one convex cross screw at the top of the motherboard and two at the bottom.

2x Convex Cross Screws

1x Phillips Screw

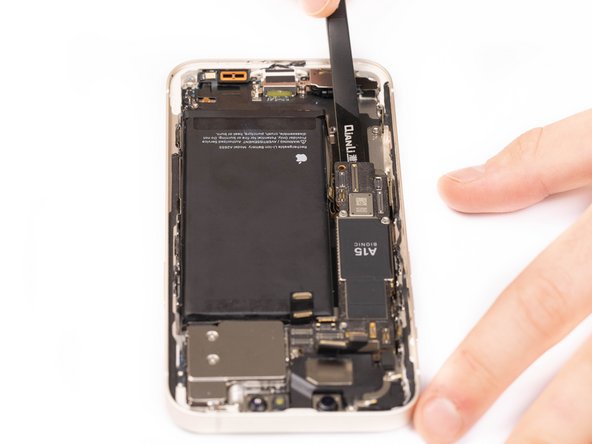

IMPORTANT DISCLAIMER: This guide has been made with a UK iPhone 13 Model A2633. If you are not from the UK you may have a different model which will have a 5G cable soldered to the back of your motherboard and runs underneath the battery.

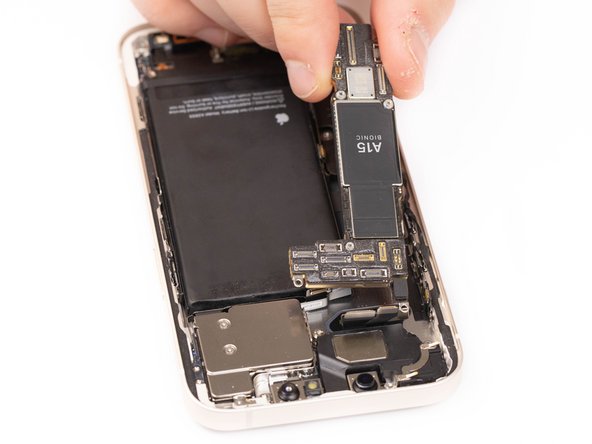

To avoid damaging the cable you will need to remove the battery before you remove the motherboard and then disconnect the 5G cable. You can then continue following this guide. To remove your iPhone 13 battery, follow this guide here.

Using a spudger or tweezers, slowly lift the motherboard out from between the frame and the battery.

Using your fingers, gently fold back the flex cables at the top of the motherboard. You can now safely remove the motherboard.

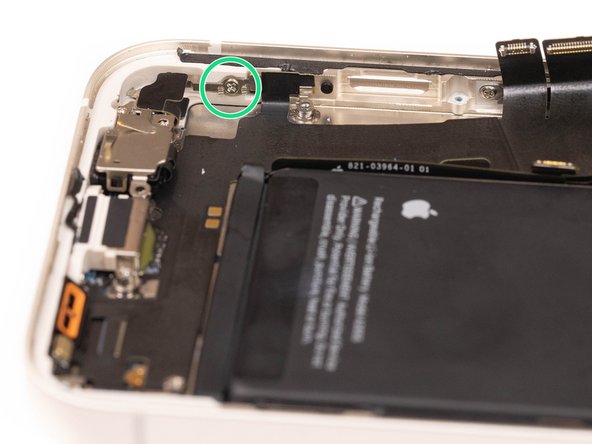

Remove two of the charge port screws located on the sides of the phone, one is located on the left and the other on the right.

1x Phillips Screw

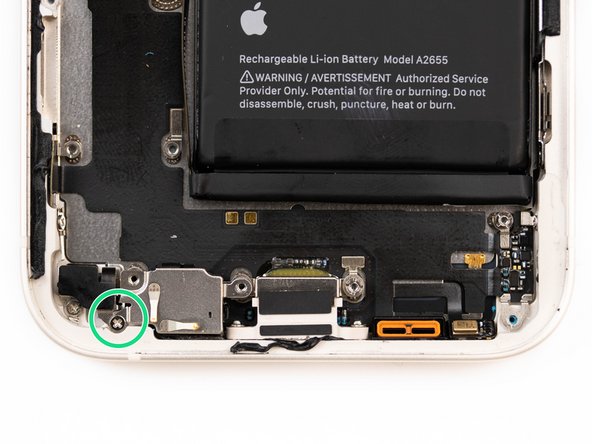

There's a protective cover resting over two microphones. Remove the screw securing the protective cover.

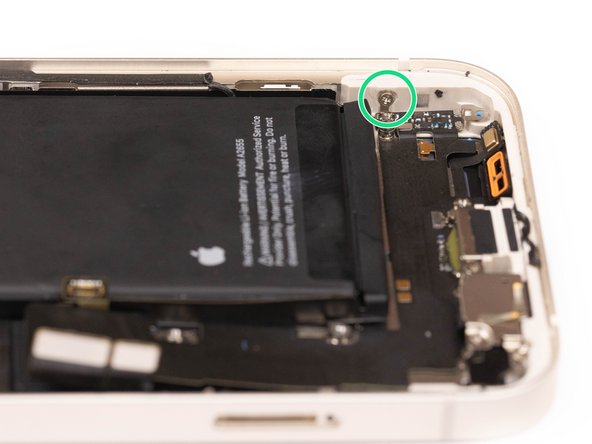

1x Phillips Screw

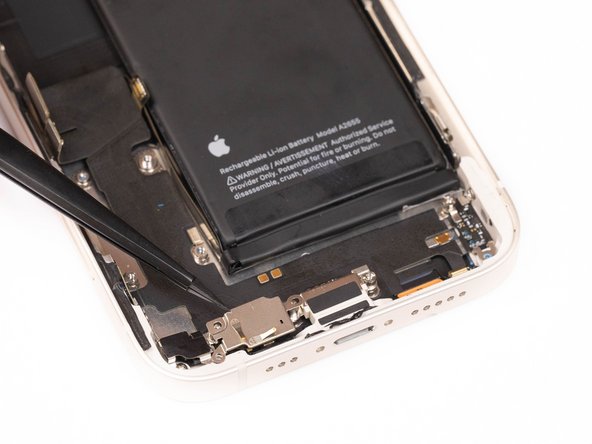

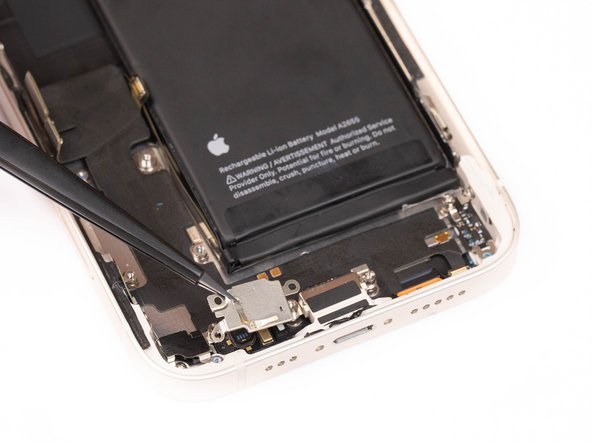

Using tweezers, pull the protective cover away. The cover is stuck down with an adhesive so you'll need to be firm when removing it.

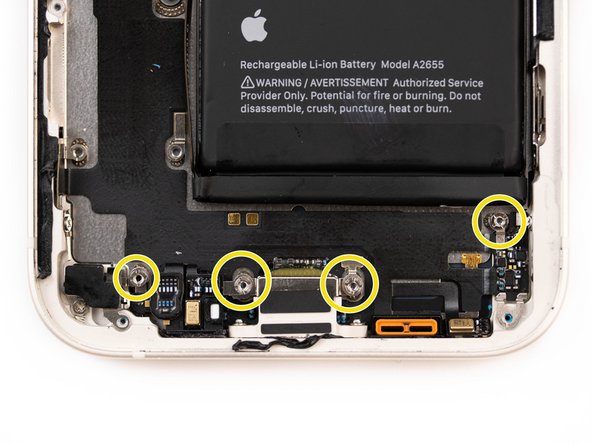

Remove the four screws holding down the charge port.

4x Convex Cross Screws

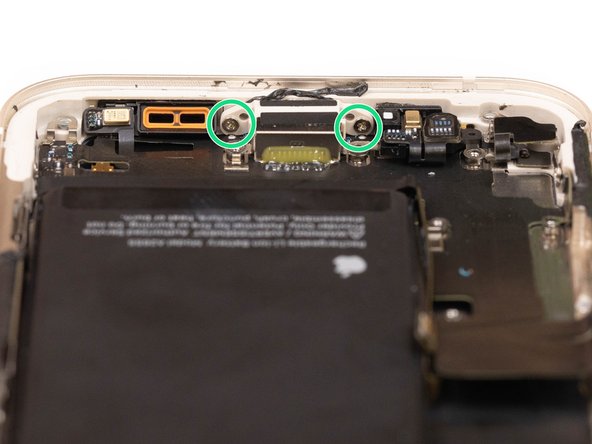

Remove the two screws holding the charge port to the bottom of the iPhone case.

2x Phillips Screws

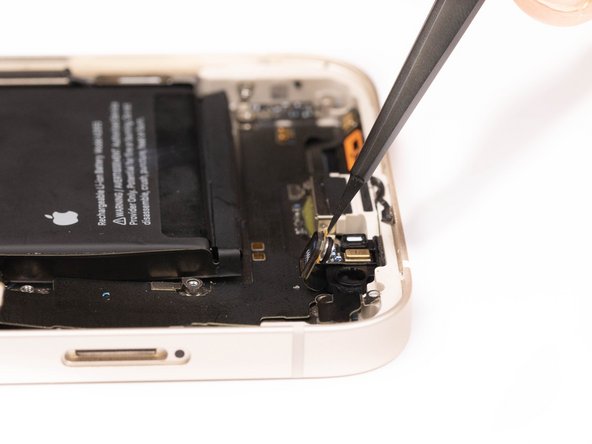

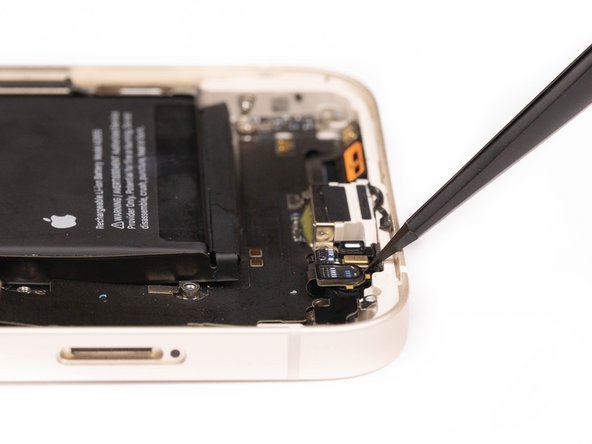

Using a tweezer, disconnect the first microphone from its socket.

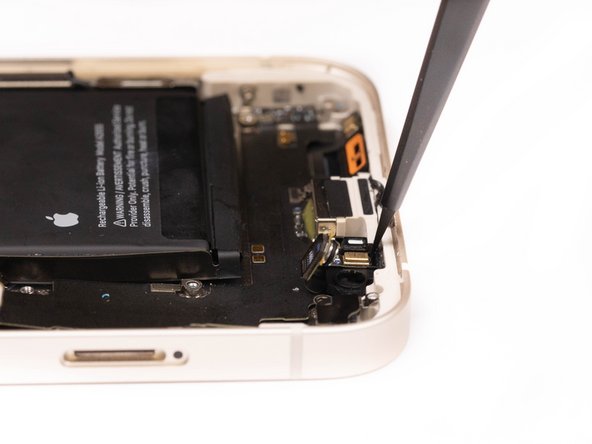

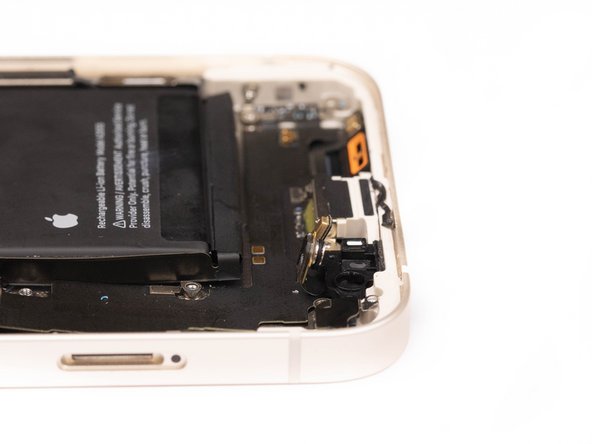

Using a tweezer, disconnect the second microphone from its socket.

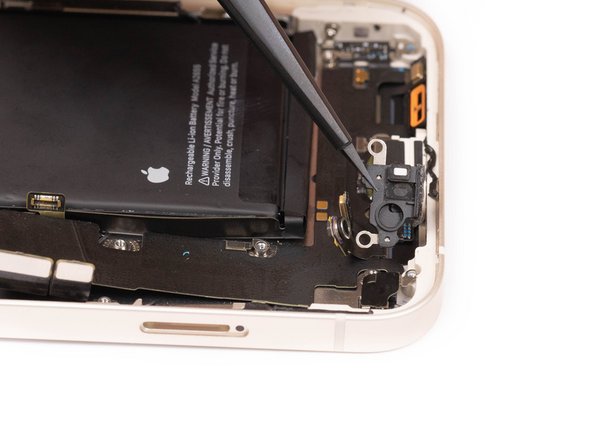

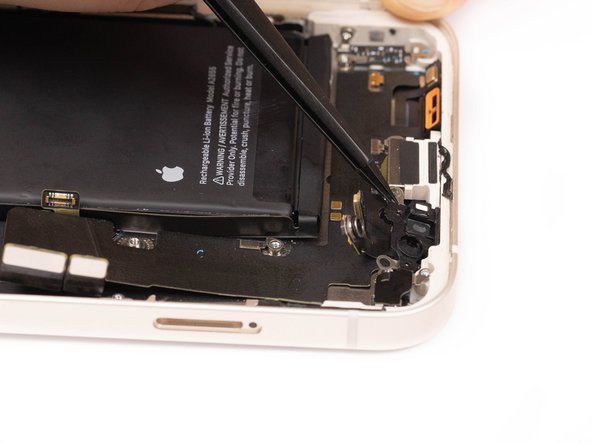

Remove the plastic bracket holding the microphones down.

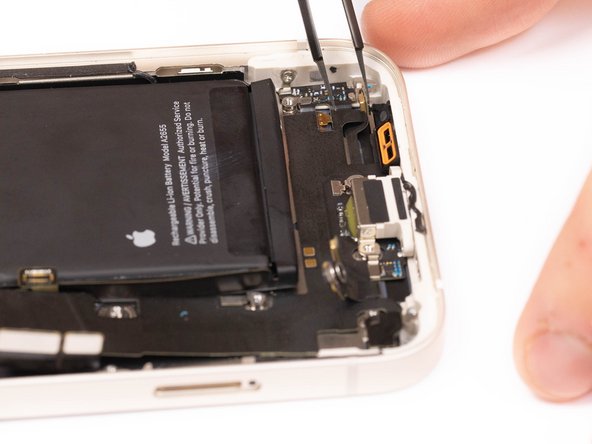

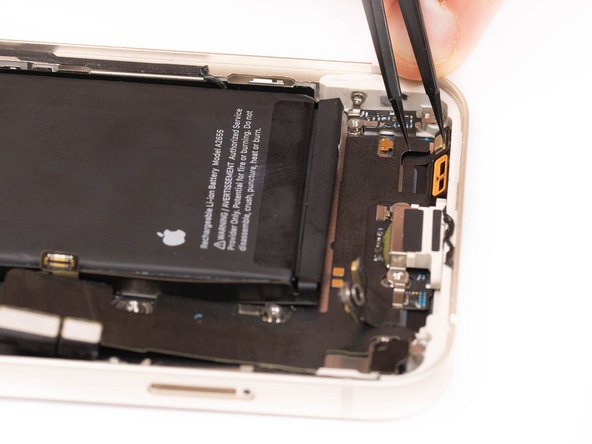

Using tweezers, remove the third microphone from it's socket.

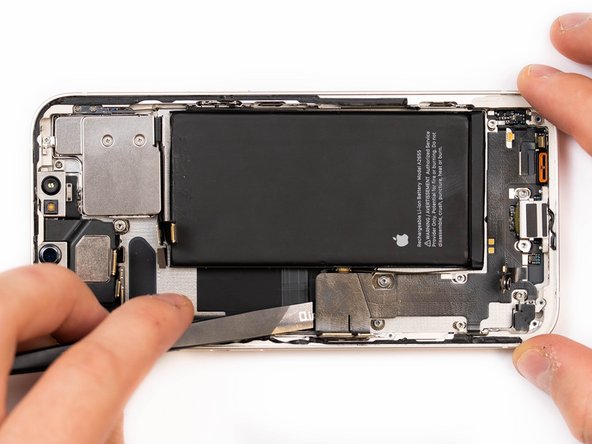

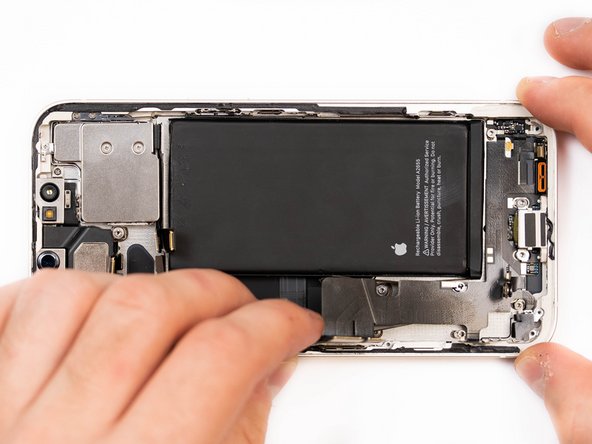

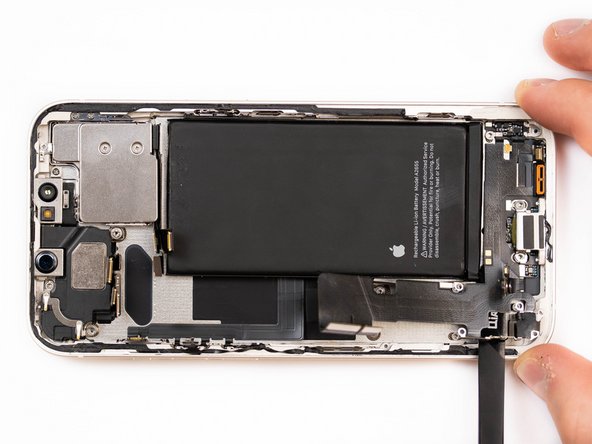

Begin prying the start of the charge port flex up with a spudger.

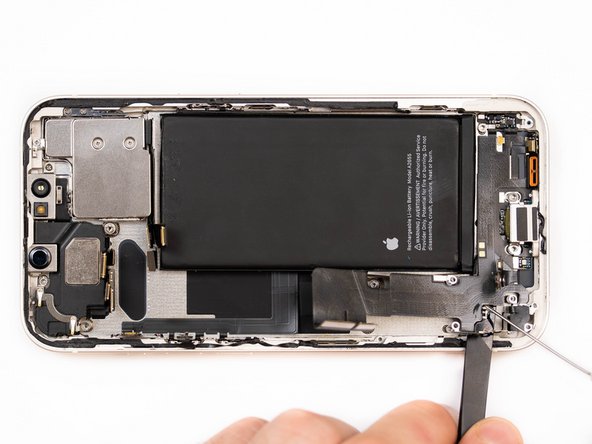

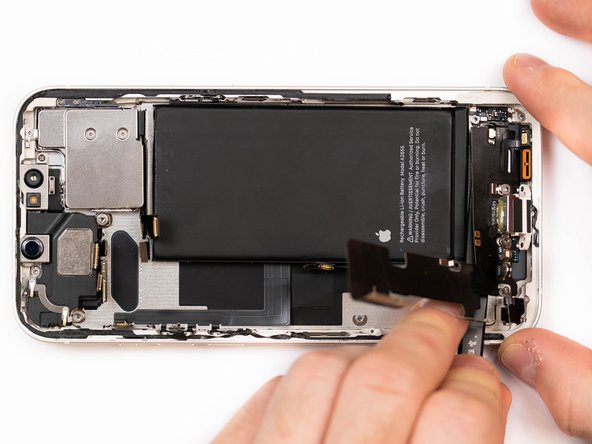

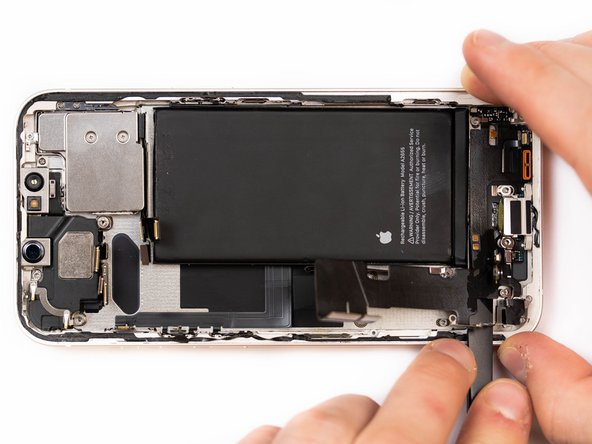

Apply a small amount of IPA to loosen the charge port. This will help you lift it up from the phone case.

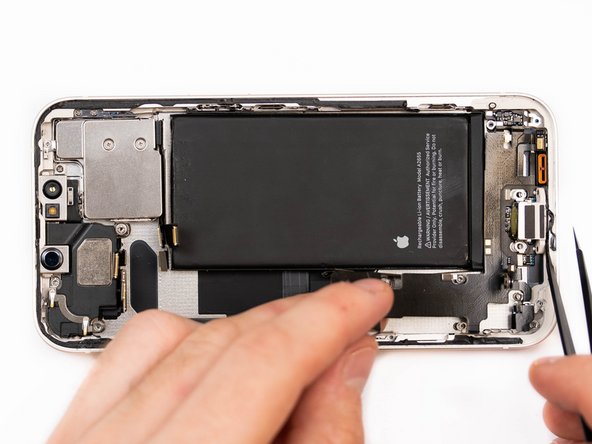

Using a tweezer, slowly pry the charge port away from the phone case.

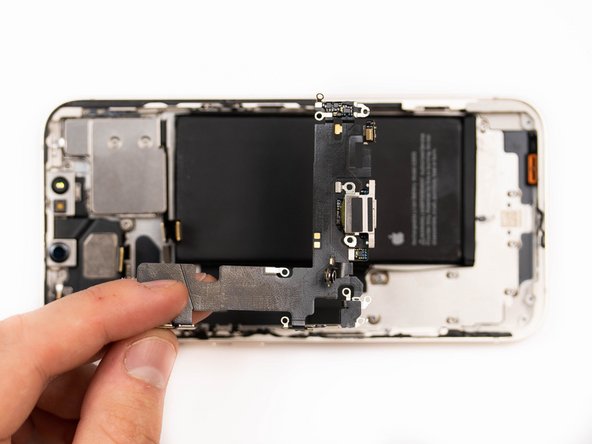

Remove the charge port.

To reassemble the charge port, follow this guide backwards from step 45 to step 8.

To re-fit the screen, check out our iPhone 13 screen replacement guide here.
