iPhone 13 Battery Replacement

Caution: Before starting this repair, discharge your iPhone battery below 25%. Accidentally puncturing a charged lithium-ion battery can cause it to catch fire and/or explode.

Turn your iPhone off before beginning this repair.

At the bottom of the iPhone, unscrew and remove the two pentalobe screws.

2x Pentalobe Screws

When you open the iPhone's display it will compromise its waterproof seals. Make sure you have replacement seals ready before continuing with this guide, or take care when reassembling your phone to avoid liquid exposure.

We're heating the iPhone at 100 degrees celsius using the Forward FW-360 heater. If you don't have a suitable heater, you can purchase yours here.

Leave the phone to heat up for a maximum of 2-3 minutes.

By heating the phone you will be softening the adhesive that is holding the LCD screen to the phone, and thus making it easier to open.

Apply your suction cup to the bottom edge of your phone. Don't place it too far down though, avoid putting it at the very edge of the glass. If you don't have a suction cup, you can purchase yours here.

If you have a severely cracked screen, you may have trouble mounting the suction cup. You can combat this by covering the screen with tape and mounting the suction cup to the tape.

Pull the suction cup away from the phone, this will create a gap between the front panel and rear case.

If you're struggling to create the gap, it might be due to the phone having cooled down. Heat the phone up and try again, the watertight adhesive holding the screen down is very strong so this may take time to slowly weaken the adhesive enough to create an opening.

Using a pry tool or plastic card, begin prying the bottom edge of the phone open. You can use some IPA to help loosen the screen if you're struggling.

Continue prying the phone open along the left and right side.

Be careful not to insert your prying tool too far into the phone, a few millimiteres will be enough. You risk damaging the cables connecting the screen if you insert the pry tool too far.

Once most of your screen has come loose, remove your suction cup and begin prying the screen off with your hands. With a small amount of force, the screen should come free from the adhesive. Your phone should open like a book.

Make sure you are opening the phone from the right side. The left side has a few fragile cables that connect the screen to the iPhone logic board.

Use your suction cup or another object to prop your screen up while you're disconnecting it in the next steps.

There are three screws holding the battery and display connector cover down. You'll need to remove these.

3x Phillips Screws

If reassembling, this point is a great time to quickly power your iPhone on and check that everything is working correctly.

Once you've removed the screws, remove the cover.

Use a spudger and pry the battery connector up from its socket on the logic board. Make sure your spudger is clean.

If you don't have a spudger, you can use your fingernails, but make sure they're clean.

The black silicone seal surrounding this connection and others act as extra protection against water and dust so be careful and try not to damage them.

Bend the connector away from it's connection socket to fully disconnect it.

Disconnect the display cable with a spudger or fingernail.

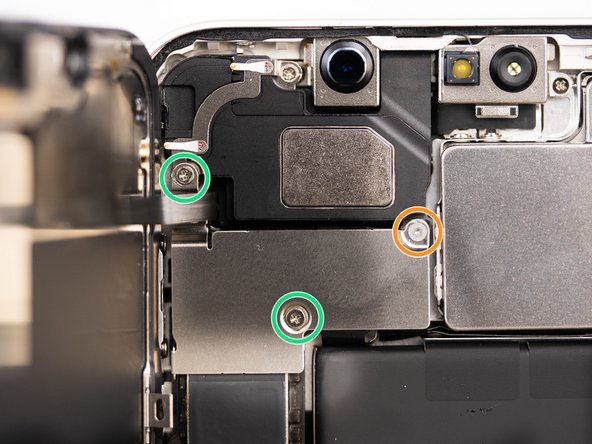

Remove the three screws holding the connector cover in place.

1x Tri-point screw

2x Phillips screws

Take caution when removing the cover, there's a small clip on the left side that hooks the cover down. Unhook it and then remove.

When reassembling, don't forget to clip the cover back in before screwing it back down.

Disconnect the front sensor assembly cable connector with a spudger or your fingernail.

Pull the display assembly away from the phone.

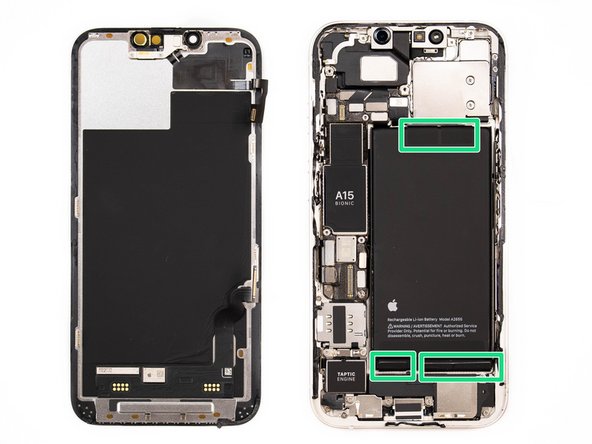

The battery is secured to the case with four stretch-release-adhesives, you'll need to remove these in order to remove the battery.

Two of the adhesives are located on the bottom edge of the battery and the other two are located on the top. Each individual adhesive has a black pull tab at the end, which is lightly stuck to the edge of the battery.

When the adhesives are stretched they lose their stickiness, in the next few steps we'll demonstrate how to properly remove these strips with ease.

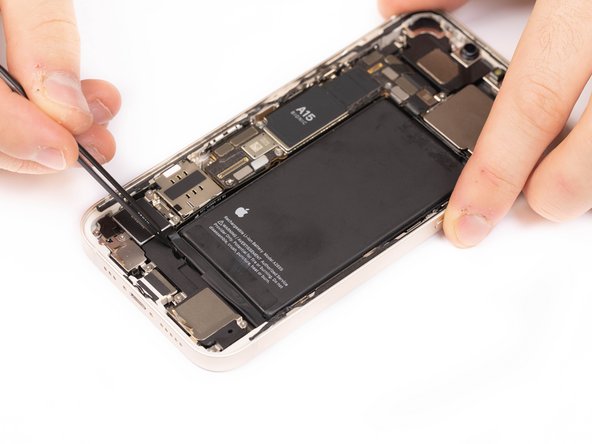

Using tweezers, pull down the first stretch release adhesive pull tab.

Caution: Don't jab the battery with any sharp tools. A punctured battery may leak dangerous chemicals or catch fire.

Hold the iPhone by it's sides rather than pressing on the battery.

Using a tweezers, slowly pull the adhesive out from under the battery.

Apply enough tension for the adhesive to begin unsticking, but don't pull too hard that it rips.

Use some IPA if you're struggling to loosen the adhesive.

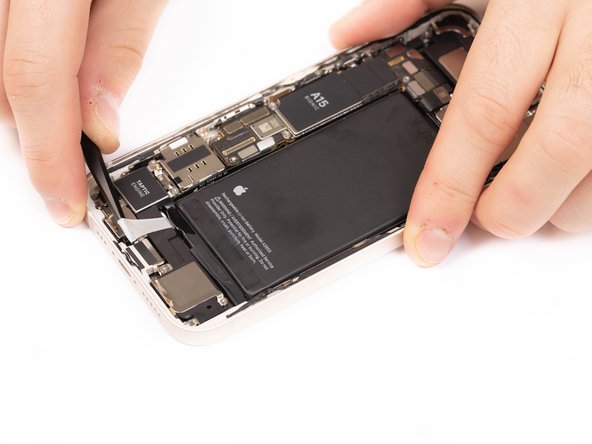

For the best grip on the adhesive, keep twisting the adhesive onto the tweezers, that way the pressure you're applying will remain consistent/even across the adhesive.

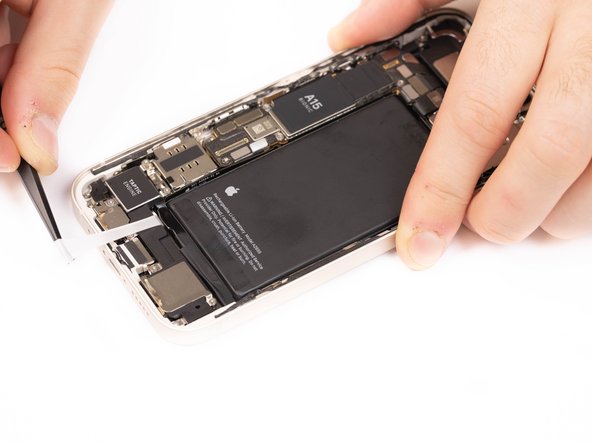

Pull the strip away at a low angle so the strip doesn't snag on the edge of the battery.

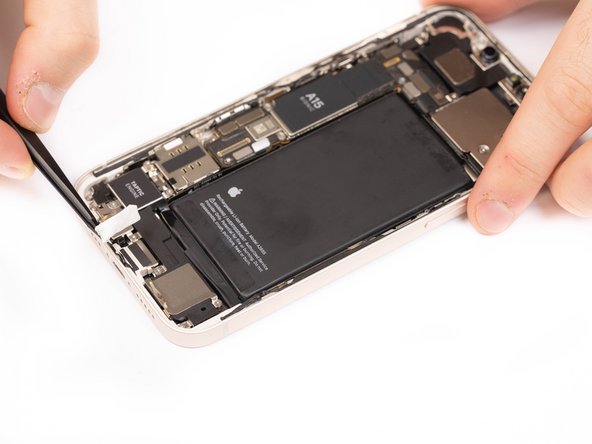

If the adhesive strip does break off, use a tweezers or your fingers to try and retrieve it. It's important not to try and retrieve it by prying underneath the battery.

If any of the adhesive strips break off underneath the battery and can't be retrieved, try to remove the other strips.

Do the same for the second adhesive pull tab next to the one you've just removed.

Pull down the adhesive tabs at the top of the battery.

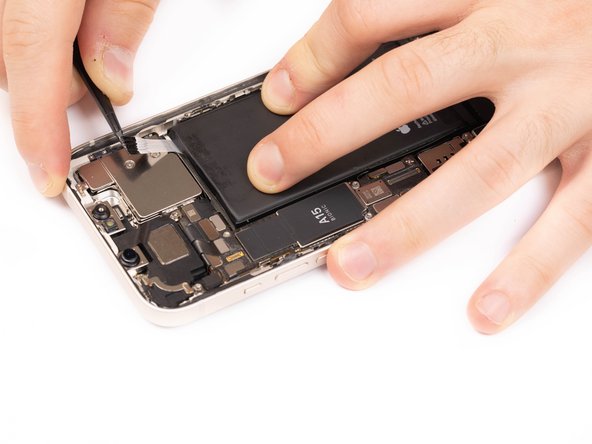

Using the same method as the previous step, remove the remaining adhesive strips.

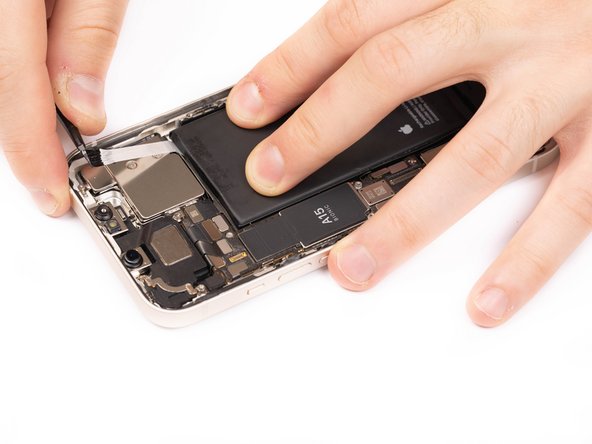

Be careful not to fling the battery from the iPhone as the final adhesive strip comes out.

If you've successfully removed all of the adhesive strips, skip the next step. If you haven't been successful, continue with the next step.

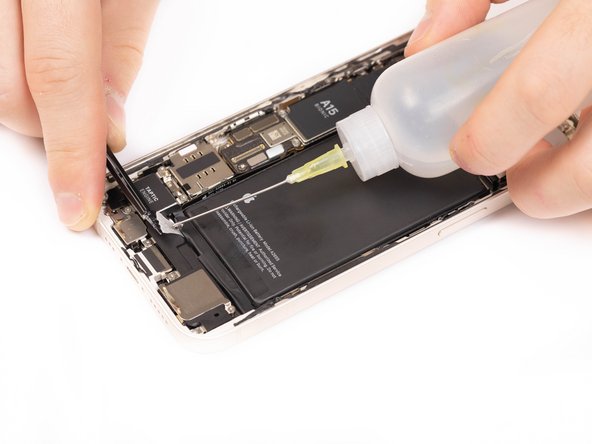

If you're unable to remove the battery, apply some IPA underneath the battery. This will help weaken the adhesive.

Wait for about a minute to allow the IPA to do its magic.

Gently lift the battery using a spudger.

If you're still struggling to pry the battery away with the spudger, apply some more IPA until you start to feel it loosen. Don't try to forcefully lever the battery out. Make sure you don't deform or puncture the battery with your pry tool.

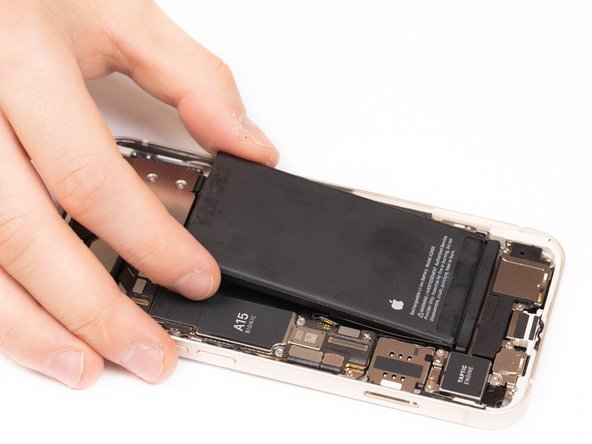

Remove the battery using your fingers.

Apply the IPA to a clean cloth and wipe down the inside of the phone where the battery had previously been sat.

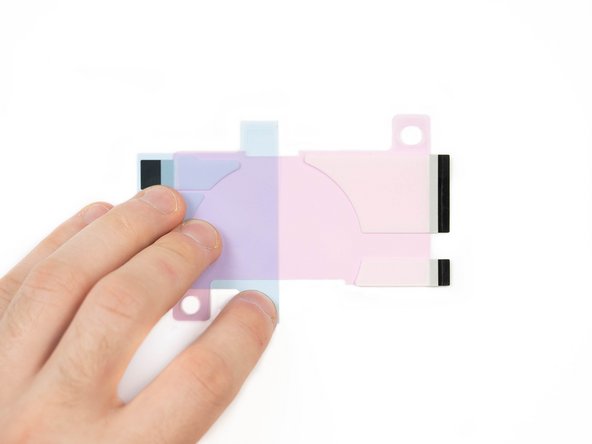

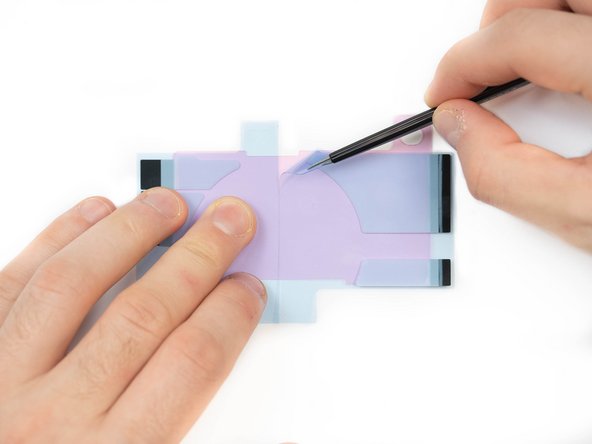

Peel the first protective liner of the adhesive away.

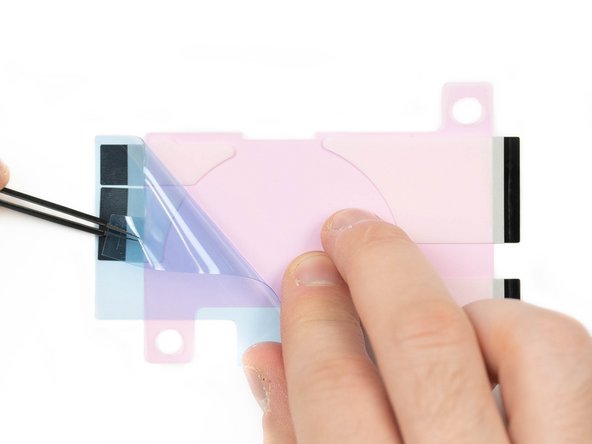

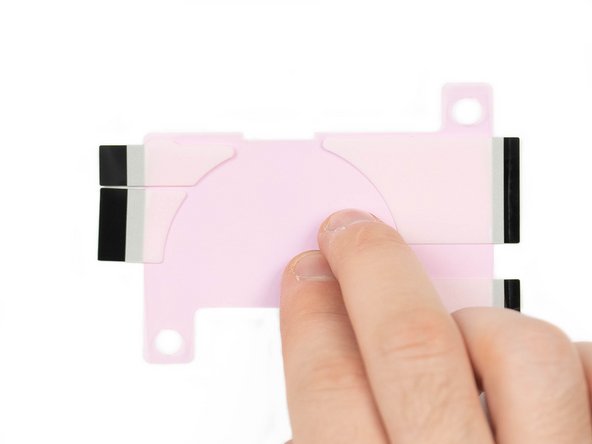

Once the adhesive is exposed, be careful not to get it dusty/dirty.

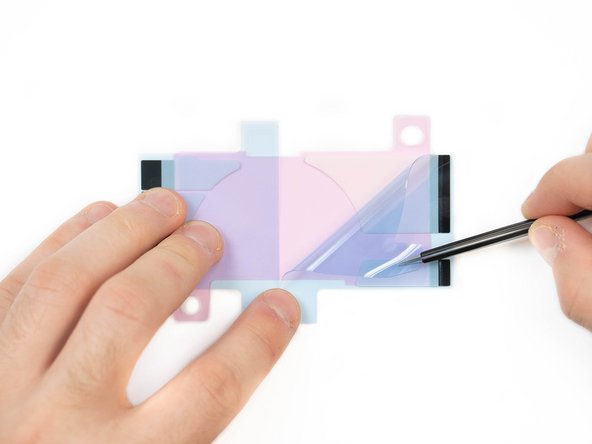

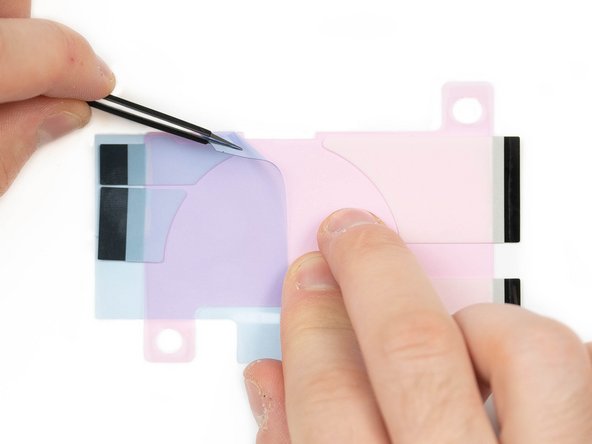

Peel the second protective liner of the adhesive away.

Once the adhesive is exposed, be careful not to get it dusty/dirty.

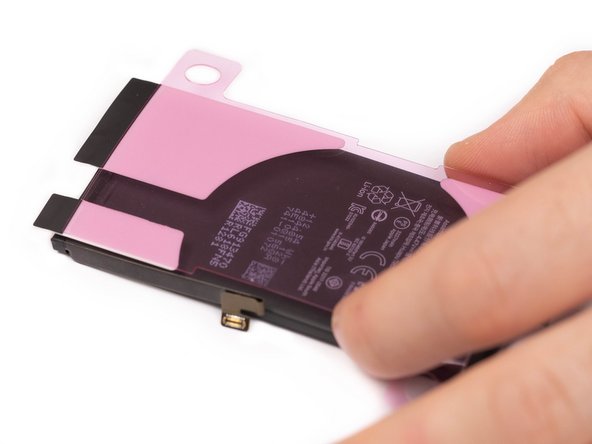

Grab your new battery, line up the adhesives and slowly stick them down to the back side of the battery.

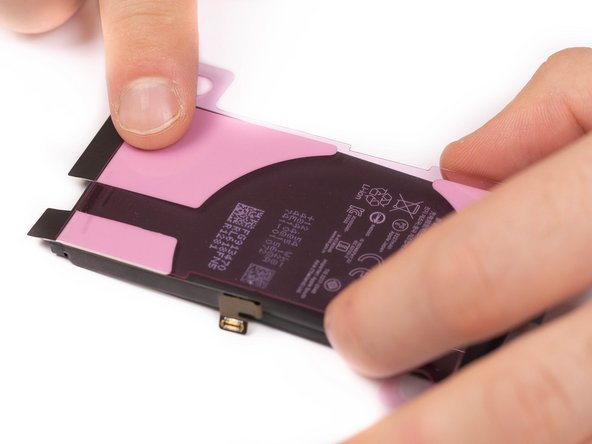

We're using the same battery we removed earlier as this is for training purposes.

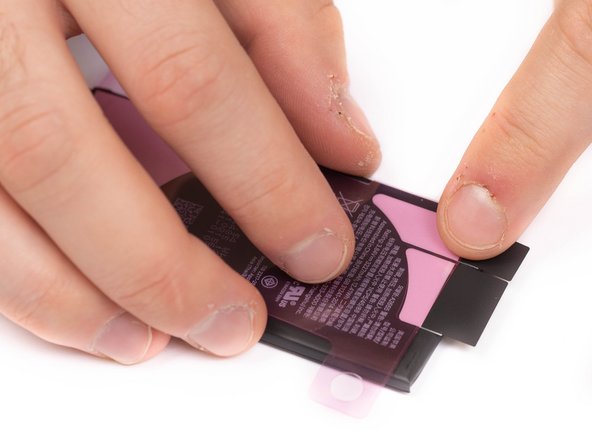

Once the adhesive is suck to the battery, you won't be able to re-position it.

Make sure the two shorter strips are nearest to the battery cable connector.

Center the strips so that the two pairs of black tabs protrude evenly from each side of the battery.

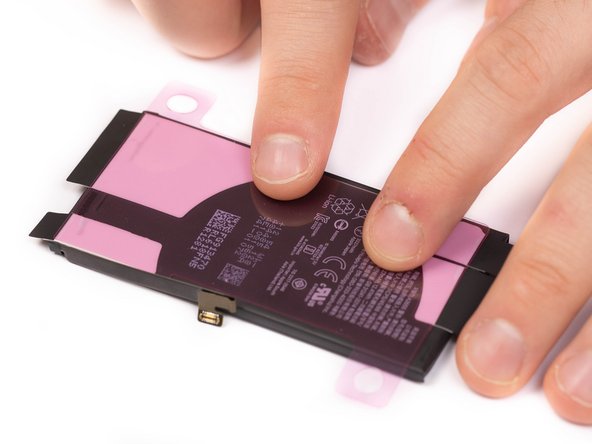

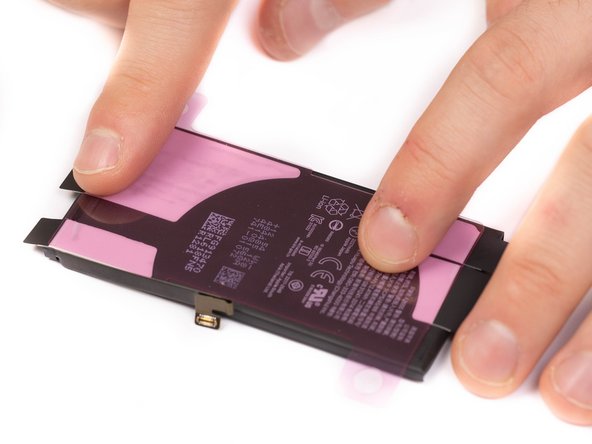

Using your fingers, firmly press the adhesive strips into place.

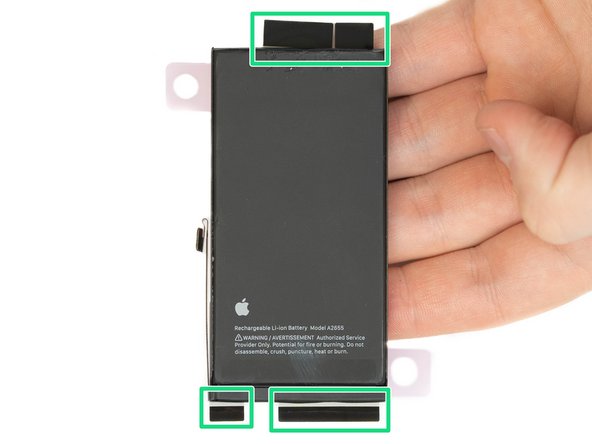

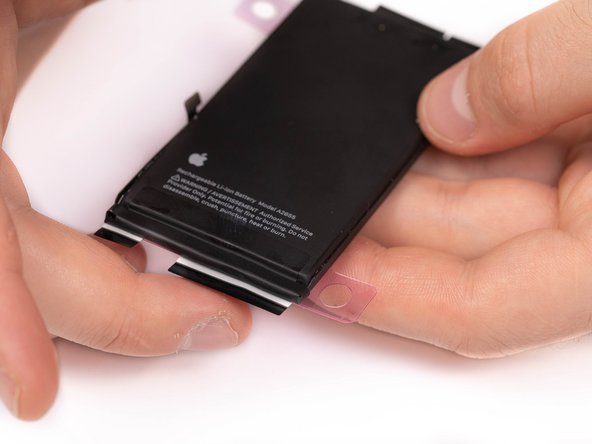

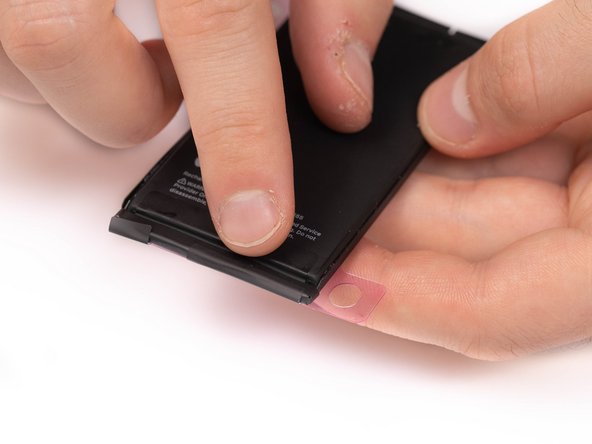

Using your finger, fold the four black tabs into place. Do this for every black tab.

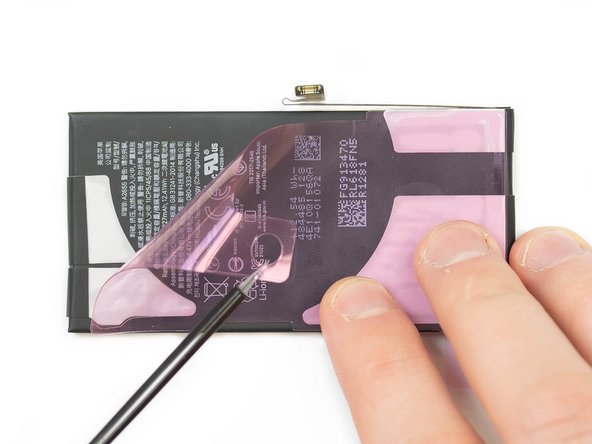

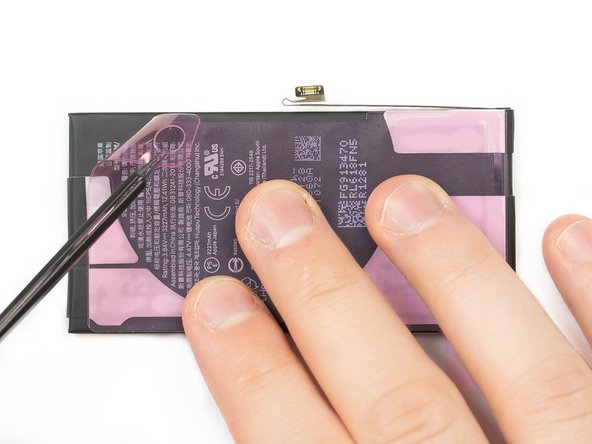

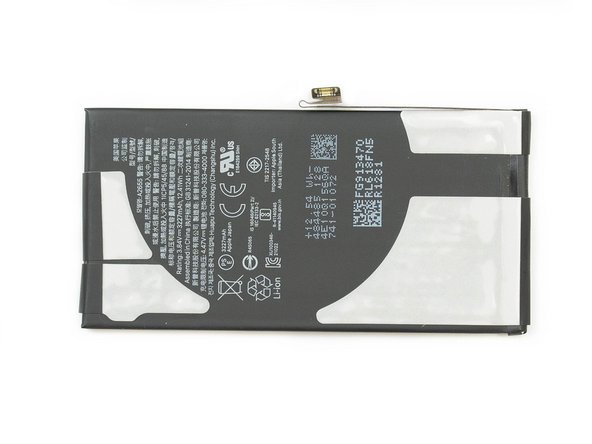

Peel away the final large liner to expose the adhesives.

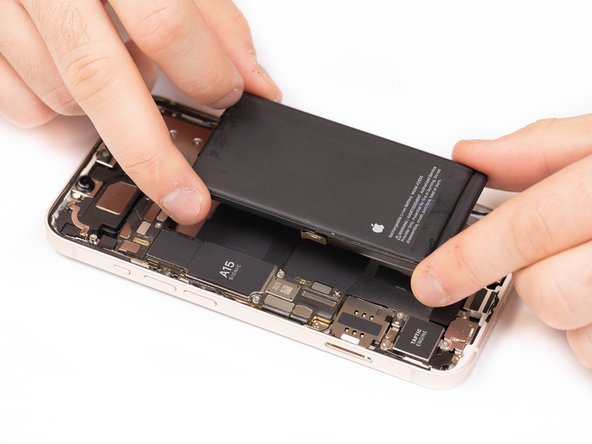

Carefully position the battery and place it into the phone.

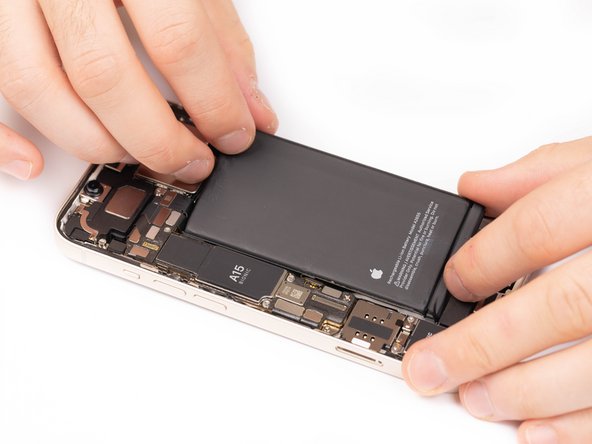

Firmly press the top and bottom of the battery into place. This will help the adhesives stick to the rear case.

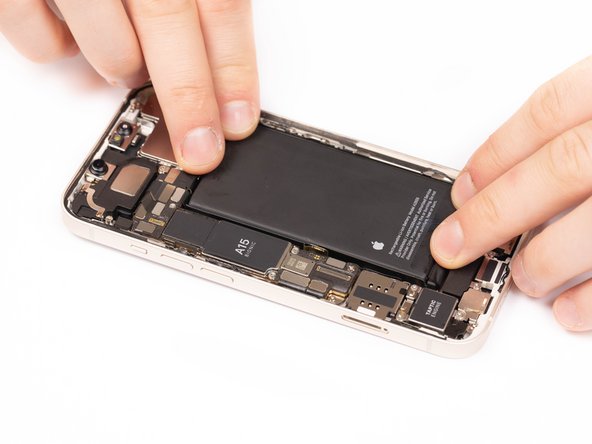

Once you've turned your phone on with your new battery fitted, you may get an error message warning about the genuineness of the battery even if you're using an original apple part. If your iPhone is functioning normally, you can safely ignore the warning.

To get the most out of your new battery you'll need to calibrate it. Charge your battery to 100% and continue charging it for a further two hours. Then use your iPhone until it turns off due to low battery, then charge it to 100%.

If you want to maintain your iPhones water resistance, you'll need to replace the waterproof adhesive.

If you've decided not to apply a waterproof adhesive, continue re-fitting your new screen by following steps 12-8 backward, then return to step 35 to finish. However, we do highly recommend re-fitting the waterproof adhesive.

Once you have your new screens cables and battery connected, power your phone on and check that everything is working correctly. Make sure you power your phone back down before continuing.

Start by removing the old adhesive that's located around the parameters of your iPhone chassis.

We're using a tweezer to slowly pick and pull the adhesive away, but you can use a spudger if you don't have tweezers.

Clean the areas of the case where you removed the adhesive with a lint-free cloth and some IPA. This will prep your surface for your new adhesive.

Rub your cloth in one direction rather than back and forth for best results.

Peel away the protective cover for your adhesive. There will be a tab sticking out, use that to pull from.

Line up the adhesive with the top edge of your iPhone case and gently press it into place. Do the same with the opposite side of the adhesive.

If the position of the adhesive is incorrect, you won't be able to re-position it. You'll have to remove it and start over with a new adhesive, so take your time through this step.

Use a spudger or tweezers to firmly press the adhesive in place across all four corners.

Be careful not to press on any internal parts or the cameras.

Use tweezers to peel away the protective cover from the adhesive.

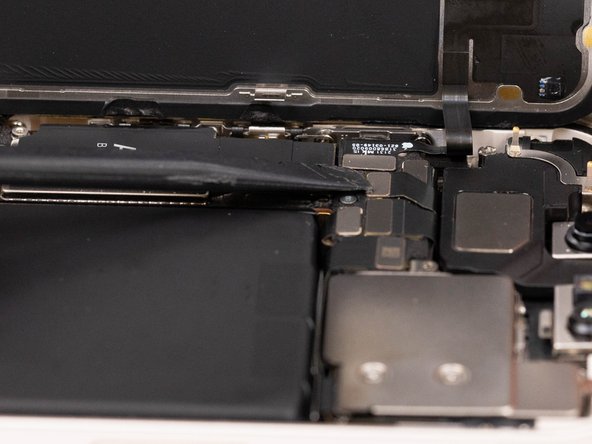

Before continuing, re-connect your new screen by following steps 12-8 backwards and return to step 34 once complete.

Once you have your new screens cables and battery connected, power your phone on and check that everything is working correctly. Make sure you power your phone back down before continuing.

Peel away the thin protective strips that are stuck to the adhesive. Remove all the strips that are stuck to the parameters of the phone.

If you haven't already done so. Before re-fitting your display, power your phone on and check that everything is working correctly. Make sure you power your phone back down before continuing.

Carefully align the top edge of the display with the top edge of the phones body.

Before closing the display entirely, make sure there are no internal cables sticking out. If any internal cables get pinched while reassembling the LCD they could be damaged beyond repair.

Slowly lower the bottom of the display into place and apply gentle pressure to click it into place.

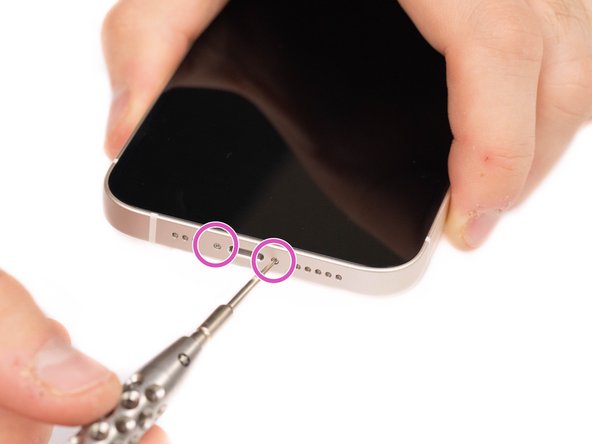

Re-fit both of your pentalobe screws.

2x Pentalobe Screws
