iPhone 12 Screen Replacement

Start by ejecting your SIM card tray. Use a SIM card eject tool or a paperclip and insert it into the small hole. The SIM tray holder is located on the same side of the phone as the volume buttons.

Make sure your SIM card is in the correct way round when re-inserting.

There's a thin rubber gasket around the SIM tray that provides protection against water and dust. Make sure to replace the gasket if it is damaged or missing, or buy a new SIM entirely. Find your SIM tray here.

Caution: Before starting this repair, discharge your iPhone battery below 25%. Accidentally puncturing a charged lithium-ion battery can cause it to catch fire and/or explode.

Turn your iPhone off.

At the bottom of the iPhone, unscrew and remove the two 6.75mm pentalobe P2 screws.

When you open the iPhone's display it will compromise its waterproof seals. Make sure you have replacement seals ready before continuing with this guide, or take care when reassembling your phone to avoid liquid exposure.

We're heating our iPhone at 100 degrees celcius using the Forward FW-360 heater. If you don't have a suitable heater, you can purchase yours here.

Leave the phone to heat up for a maximum of 2-3 minutes.

By heating the phone you will be softening the adhesive that is holding the LCD screen to the phone, and thus making it easier to open.

Apply your suction cup to the bottom edge of your phone. Don't place it too far down though, avoid putting it at the very edge of the glass. If you don't have a suction cup, you can purchase yours here.

If you have a severely cracked screen, you may have trouble mounting the suction cup. You can combat this by covering the screen with tape and mounting the suction cup to the tape.

Pull the suction cup away from the phone, this will create a gap between the front panel and rear case.

If you're struggling to create the gap, it might be due to the phone having cooled down. Heat the phone up and try again, the watertight adhesive holding the screen down is very strong so this may take time to slowly weaken the adhesive enough to create an opening.

Using a pry tool or plastic card, begin prying the bottom edge of the phone open. You can use some IPA to help loosen the screen if you're struggling.

Continue prying the phone open along the left and right side.

Be careful not to insert your prying tool too far into the phone, a few millimiteres will be enough. You risk damaging the cables connecting the screen if you insert the pry tool too far.

Once most of your screen has come loose, remove your suction cup and begin prying the screen off with your hands. With a small amount of force, the screen should come free from the adhesive. Your phone should open like a book.

Make sure you are opening the phone from the right side. The left side has a few fragile cables that connect the screen to the iPhone logic board.

Use your suction cup or another object to prop your screen up while you're disconnecting it in the next steps.

There are two 1.1mm long Y000 screws holding the battery and display connector cover down. You'll need to remove these.

If reassembling, this point is a great time to quickly power your iPhone on and check that everything is working correctly before applying a new adhesive.

Once you've removed the screws, remove the cover.

Use a spudger and pry the battery connector up from its socket on the logic board. Make sure your spudger is clean.

If you don't have a spudger, you can use your fingernails, but make sure they're clean.

The black silicone seal surrounding this connection and others act as extra protection against water and dust so be careful and try not to damage them.

Bend the connector away from it's connection socket to fully disconnect it.

Disconnect the display cable with a spudger or fingernail.

Disconnect the display cable with a spudger or fingernail.

If the touch screen doesn't seem to be working on your screen after the repair you may need to re-fit this connector. Make sure you disconnect the battery before re-fitting the connector. Make sure it clicks fully into place and that there's no dust or other obstruction in the socket.

Remove the four screws holding the connector cover in place. There are two different types of screws.

Three 1.1mm long screws.

One 1.4mm long screw.

Once you've removed the screws, remove the connector cover. It's easiest to pick it up from the left hand side, there's a small clip on the right side that hooks the cover down.

When reassembling, slot the small clip into place first before placing the cover into place.

Disconnect the front sensor assembly cable connector with a spudger or your fingernail.

Pull the display assembly away from the phone.

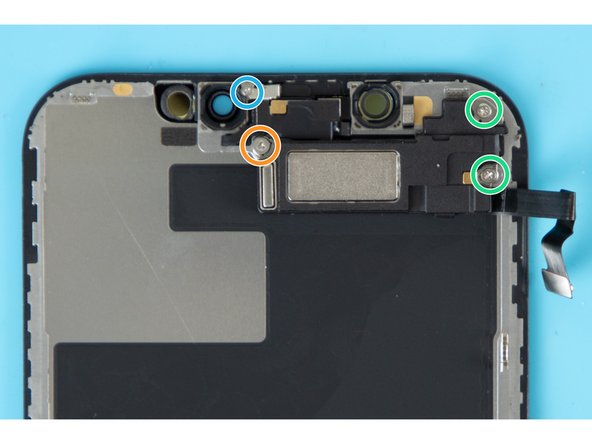

Unscrew the four screws holding the speaker/sensor assembly down. There are three different types of screws you'll need to remove.

Two 1.4 mm long Phillips screws

One 1.7 mm long shouldered Y000 screw

One 1.2 mm long Y000 screw

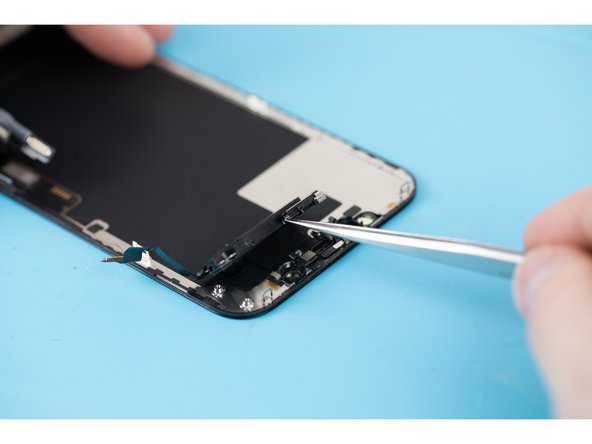

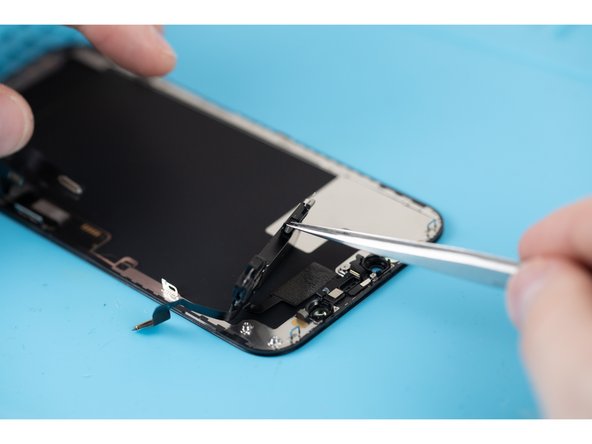

Once you've taken the screws out you'll be able to flip the speaker assembly over and place it away from the top edge of the display. Use a tweezers and carefully fold the speaker over.

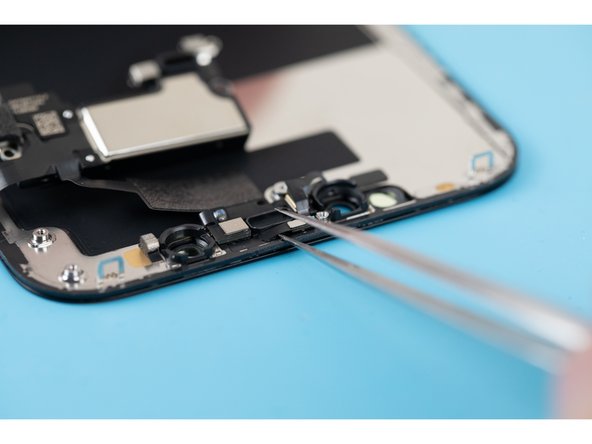

The speaker assembly will be connected by a thin ribbon cable, make sure you are careful with this cable as it's fragile.

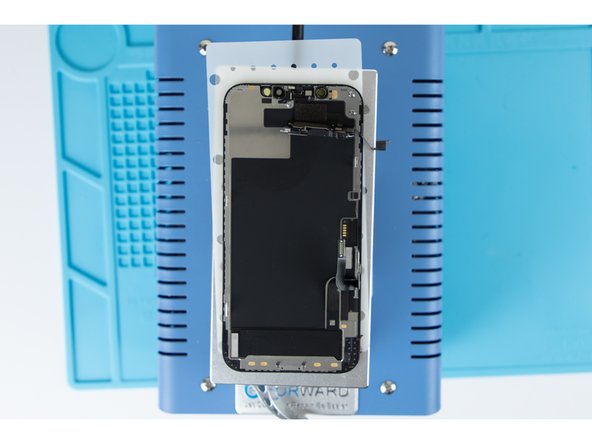

Heat the display at 100 degrees for a maximum of 1-2 minutes.

We're doing this to soften the adhesive securing the sensors.

Use a pair of tweezers or a spudger to lift the ambient light sensor out of it's resting pocket.

The light sensor ribbon cables are fragile so be careful when lifting.

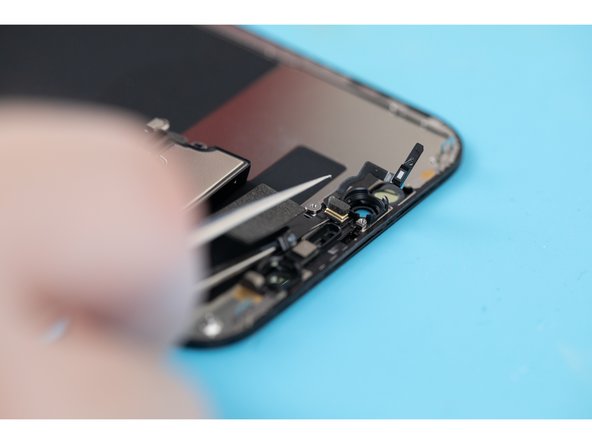

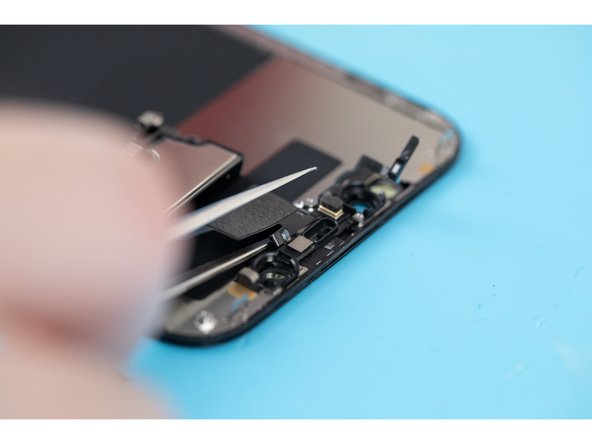

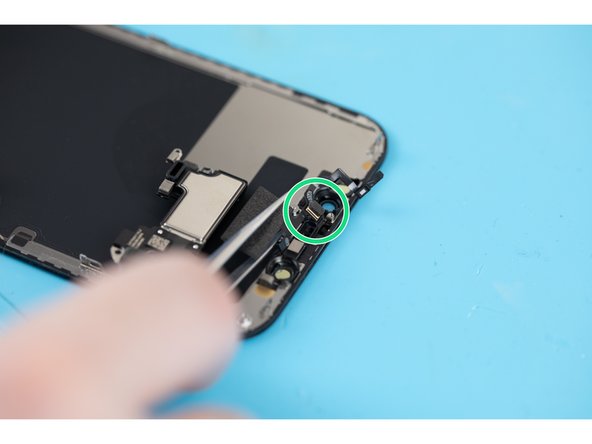

Using a pair of tweezers or a spudger, lift and separate the microphone from its pocket.

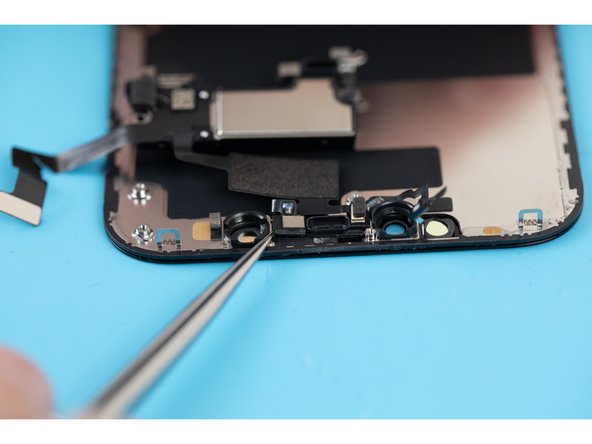

Use a pair of tweezers or a spudger to lift away the proximity sensor and flood illuminator module from its pocket.

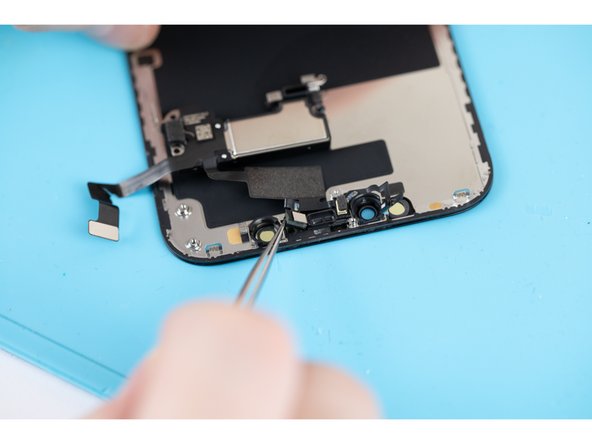

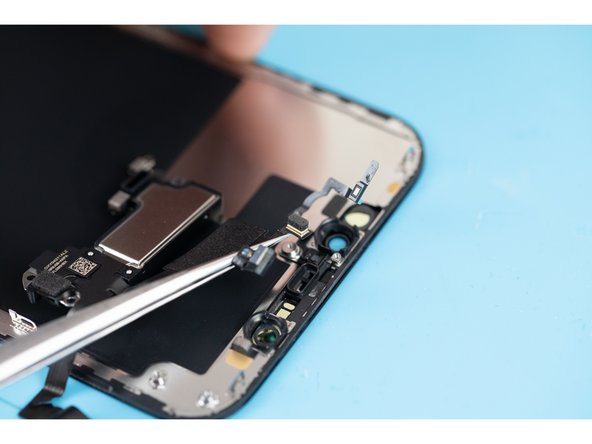

Once lifted away you can remove the earpiece speaker and front sensor assembly.

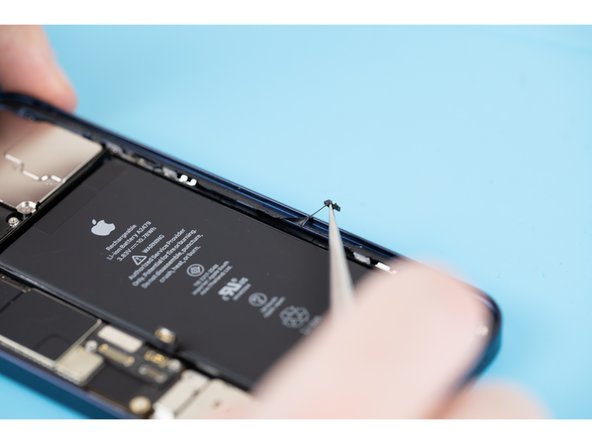

If you want to maintain your iPhones water resistance, you'll need to replace the waterproof adhesive.

If you've decided not to apply a waterproof adhesive, continue re-fitting your new screen by following these steps backward. However, we do highly recommend re-fitting the waterproof adhesive.

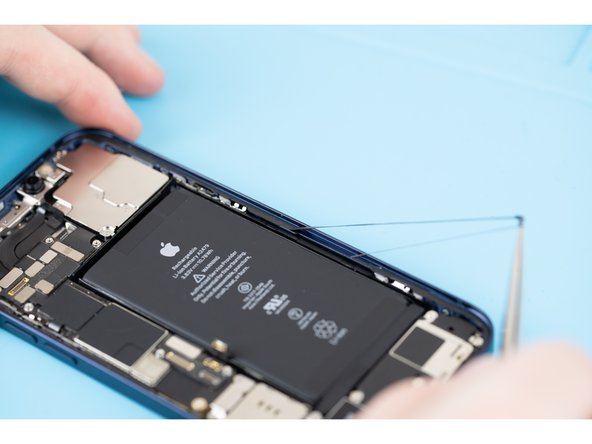

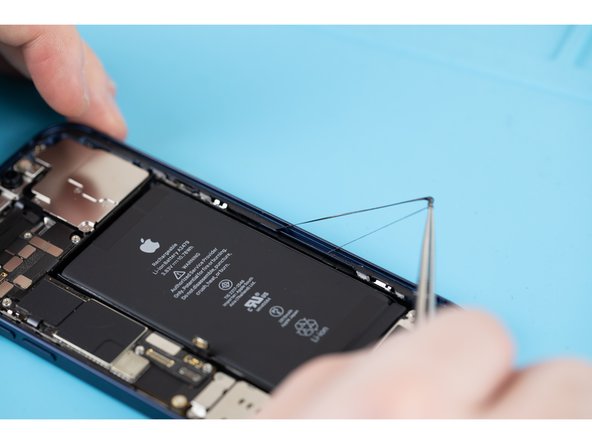

Start by removing the old adhesive that's located around the parameters of your iPhone chassis.

We're using a tweezer to slowly pick and pull the adhesive away, but you can use a spudger if you don't have tweezers.

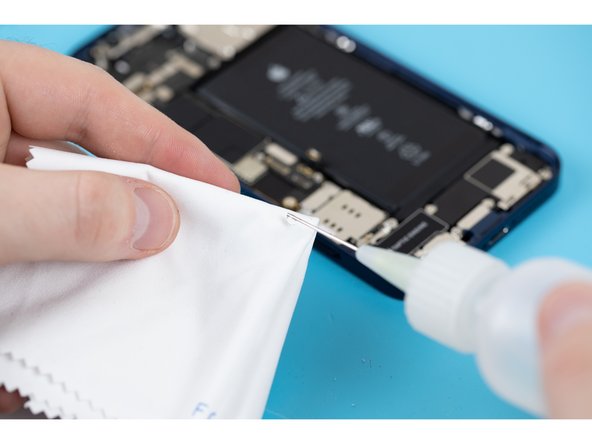

Clean the areas of the case where you removed the adhesive with a lint-free cloth and some IPA. This will prep your surface for your new adhesive.

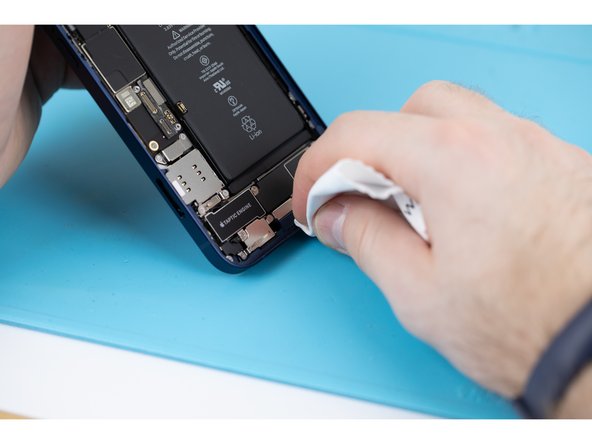

Rub your cloth in one direction rather than back and forth for best results.

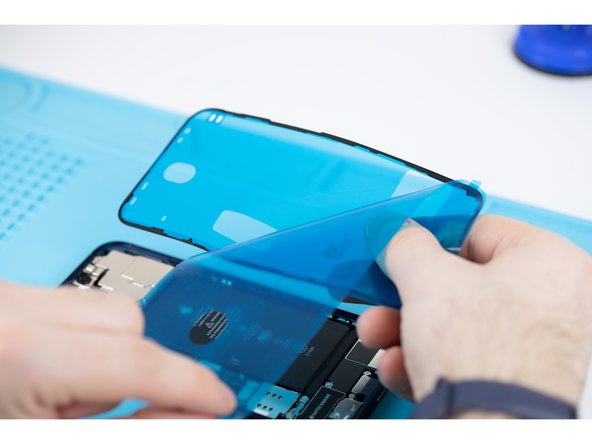

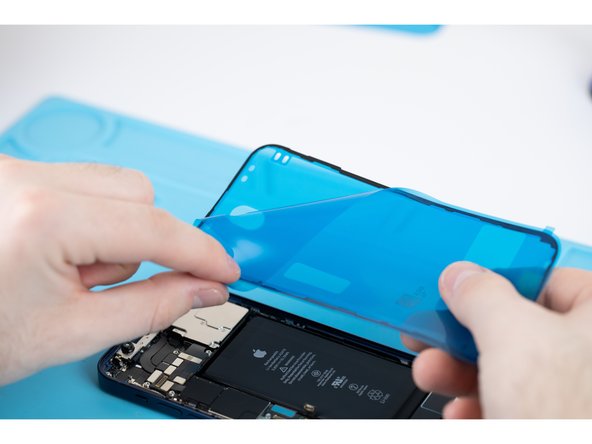

Peel away the protective cover for your adhesive. There will be a tab sticking out, use that to pull from.

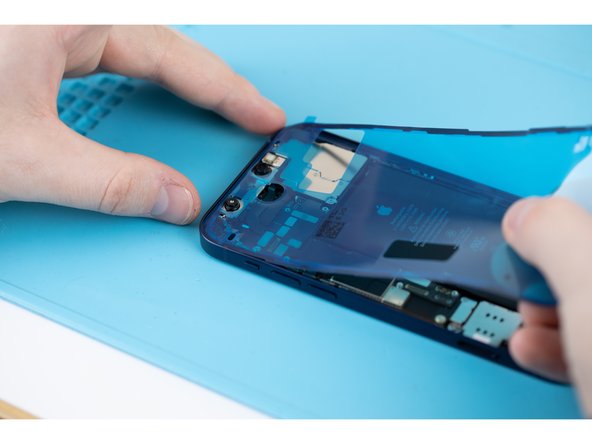

Line up the adhesive with the top edge of your iPhone case and gently press it into place. Do the same with the opposite side of the adhesive.

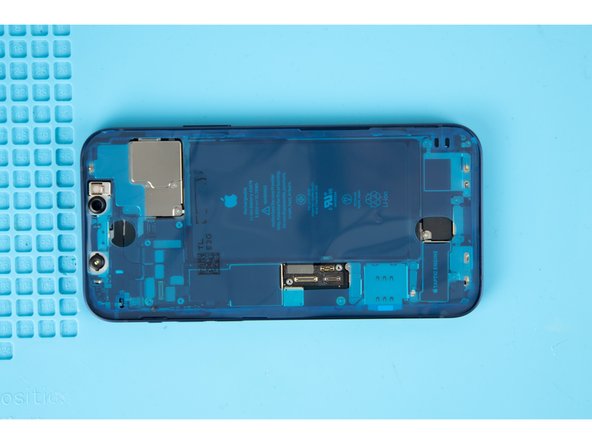

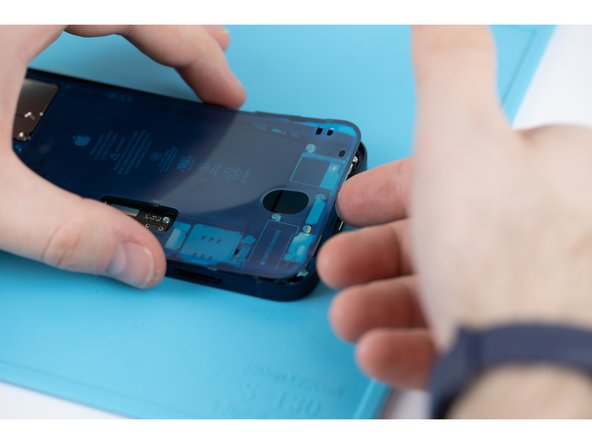

If the position of the adhesive is incorrect, you won't be able to re-position it. You'll have to remove it and start over with a new adhesive, so take your time through this step.

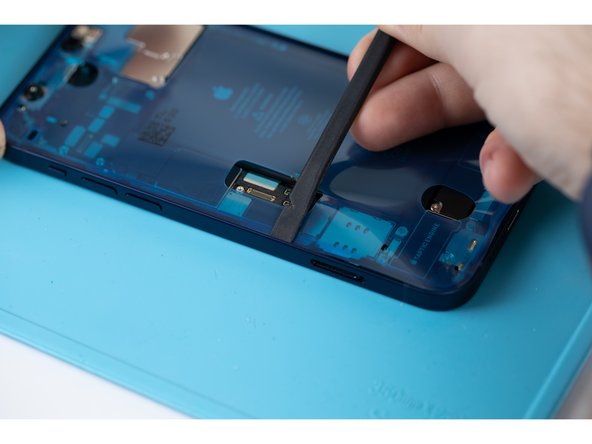

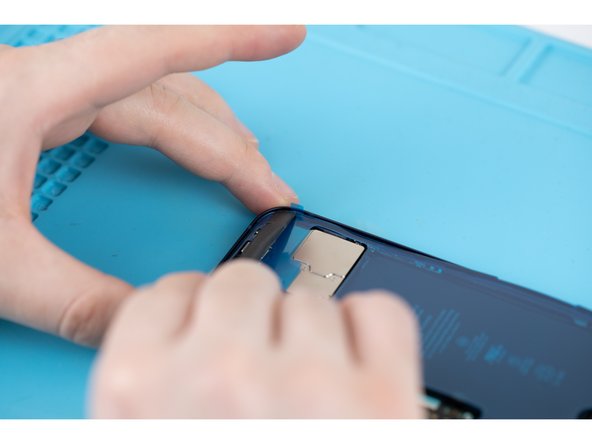

Use a spudger to firmly press the adhesive in place across all four corners.

Be careful not to press on any internal parts or the cameras.

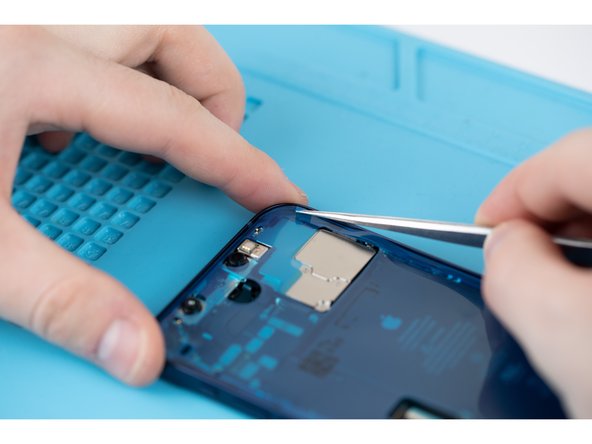

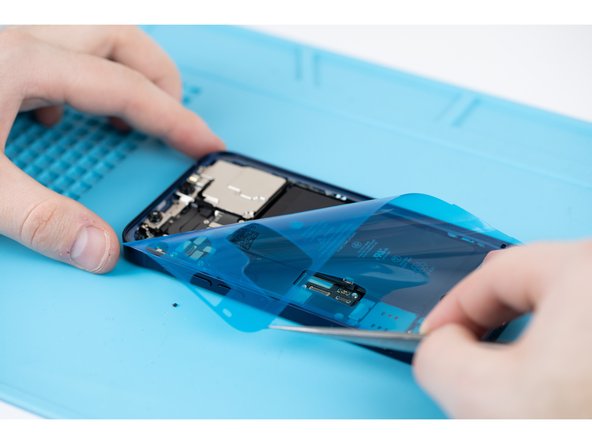

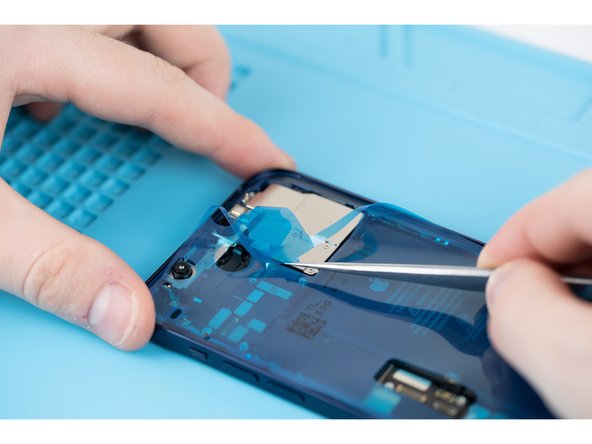

Use tweezers to peel away the protective cover from the adhesive.

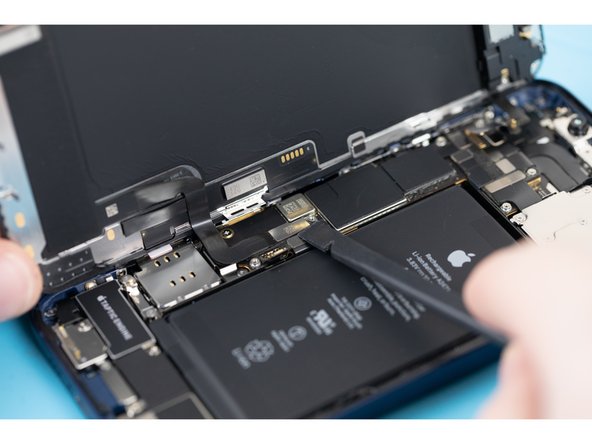

Before continuing, re-connect your new LCD screen by following steps 20-8 backward.

Once you have your new screens cables connected, power your phone on and check that everything is working correctly Make sure you power your phone back down before continuing.

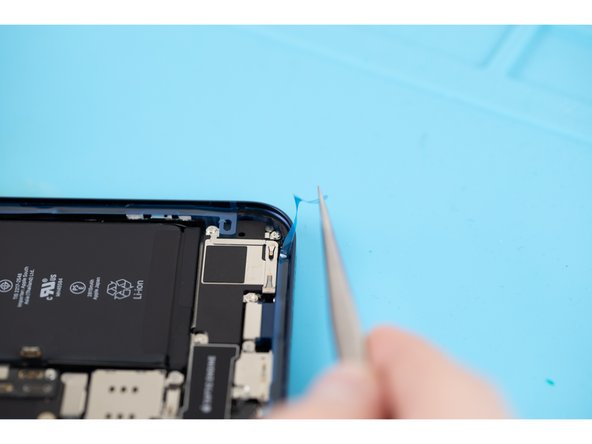

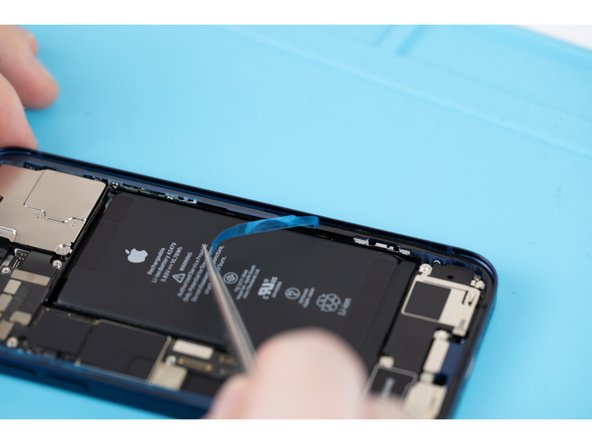

Peel away the thin protective strips that are stuck to the adhesive. Remove all the strips that are stuck to the parameters of the phone.

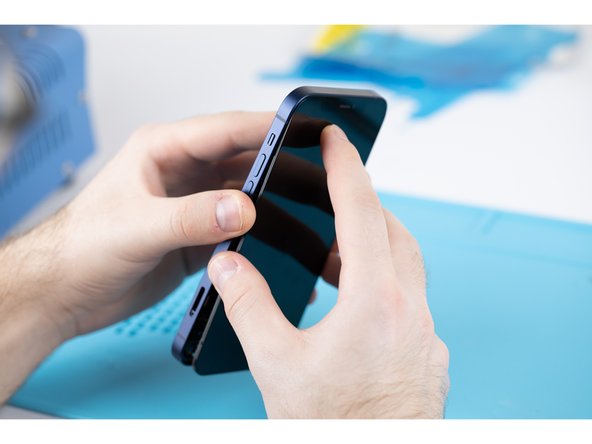

Carefully align the top edge of the display with the top edge of the phones body.

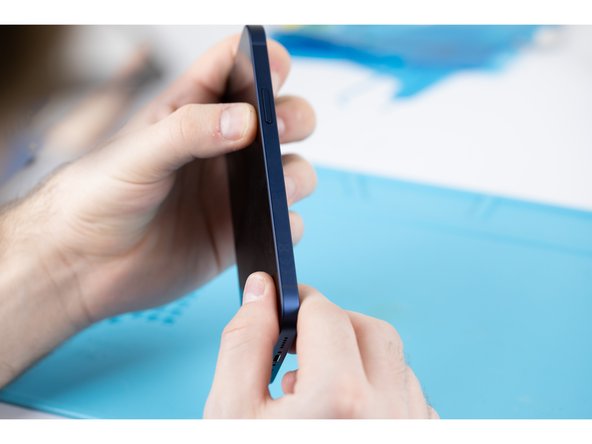

Before closing the display entirely, make sure there are no internal cables sticking out. If any internal cables get pinched while reassembling the LCD they could be damaged beyond repair.

Slowly lower the bottom of the display into place and apply gentle pressure to click it into place.

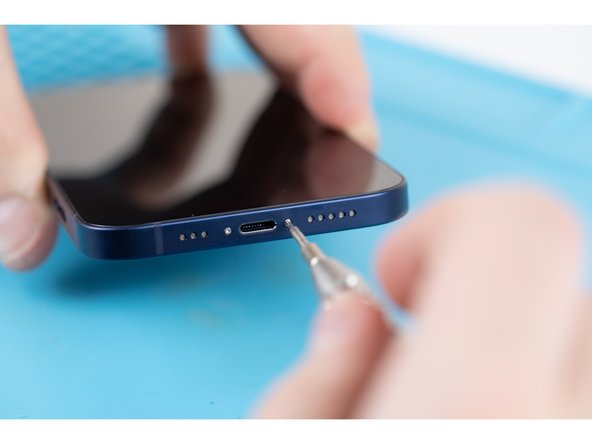

Re-fit both of your pentalobe screws.

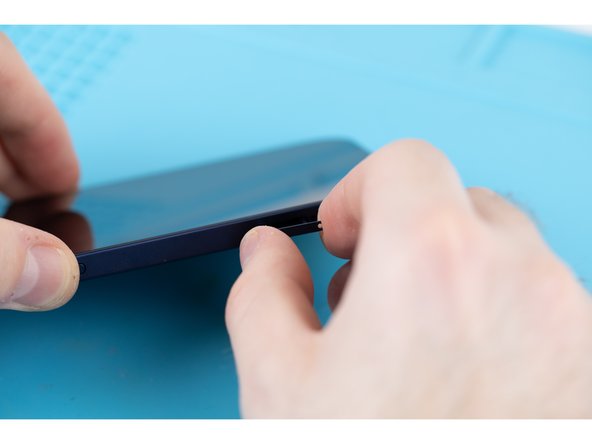

Re-fit your SIM tray.
