iPhone 12 Battery Replacement

Start by ejecting your SIM card tray. Use a SIM card eject tool or a paperclip and insert it into the small hole. The SIM tray holder is located on the same side of the phone as the volume buttons.

Make sure your SIM card is in the correct way round when re-inserting.

There's a thin rubber gasket around the SIM tray that provides protection against water and dust. Make sure to replace the gasket if it is damaged or missing, or buy a new SIM entirely. Find your SIM tray here.

Caution: Before starting this repair, discharge your iPhone battery below 25%. Accidentally puncturing a charged lithium-ion battery can cause it to catch fire and/or explode.

Turn your iPhone off.

At the bottom of the iPhone, unscrew and remove the two 6.75mm pentalobe P2 screws.

When you open the iPhone's display it will compromise its waterproof seals. Make sure you have replacement seals ready before continuing with this guide, or take care when reassembling your phone to avoid liquid exposure.

We're heating our iPhone at 100 degrees celcius using the Forward FW-360 heater. If you don't have a suitable heater, you can purchase yours here.

Leave the phone to heat up for a maximum of 2-3 minutes.

By heating the phone you will be softening the adhesive that is holding the LCD screen to the phone, and thus making it easier to open.

Apply your suction cup to the bottom edge of your phone. Don't place it too far down though, avoid putting it at the very edge of the glass. If you don't have a suction cup, you can purchase yours here.

If you have a severely cracked screen, you may have trouble mounting the suction cup. You can combat this by covering the screen with tape and mounting the suction cup to the tape.

Pull the suction cup away from the phone, this will create a gap between the front panel and rear case.

If you're struggling to create the gap, it might be due to the phone having cooled down. Heat the phone up and try again, the watertight adhesive holding the screen down is very strong so this may take time to slowly weaken the adhesive enough to create an opening.

Using a pry tool or plastic card, begin prying the bottom edge of the phone open. You can use some IPA to help loosen the screen if you're struggling.

Continue prying the phone open along the left and right side.

Be careful not to insert your prying tool too far into the phone, a few millimiteres will be enough. You risk damaging the cables connecting the screen if you insert the pry tool too far.

Once most of your screen has come loose, remove your suction cup and begin prying the screen off with your hands. With a small amount of force, the screen should come free from the adhesive. Your phone should open like a book.

Make sure you are opening the phone from the right side. The left side has a few fragile cables that connect the screen to the iPhone logic board.

Use your suction cup or another object to prop your screen up while you're disconnecting it in the next steps.

There are two 1.1mm long Y000 screws holding the battery and display connector cover down. You'll need to remove these.

If reassembling, this point is a great time to quickly power your iPhone on and check that everything is working correctly before applying a new adhesive.

Once you've removed the screws, remove the cover.

Use a spudger and pry the battery connector up from its socket on the logic board. Make sure your spudger is clean.

If you don't have a spudger, you can use your fingernails, but make sure they're clean.

The black silicone seal surrounding this connection and others act as extra protection against water and dust so be careful and try not to damage them.

Bend the connector away from it's connection socket to fully disconnect it.

Disconnect the display cable with a spudger or fingernail.

Disconnect the digitizer cable with a spudger or fingernail.

If the touch screen doesn't seem to be working on your screen after the repair you may need to re-fit this connector. Make sure you disconnect the battery before re-fitting the connector. Make sure it clicks fully into place and that there's no dust or other obstruction in the socket.

Remove the four screws holding the connector cover in place. There are two different types of screws.

Three 1.1mm long screws.

One 1.4mm long screw.

Once you've removed the screws, remove the connector cover. It's easiest to pick it up from the left hand side, there's a small clip on the right side that hooks the cover down.

When reassembling, slot the small clip into place first before placing the cover into place.

Disconnect the front sensor assembly cable connector with a spudger or your fingernail.

Pull the display assembly away from the phone.

Using a screwdriver, remove four 1.6mm screws that are securing the loudspeaker down.

Use a pair of tweezers or your fingers to remove the loudspeaker.

Using a screwdriver, remove two 1.4mm long screws securing the SIM card reader connector cover.

Using tweezers or your fingers, remove the Sim card reader cable connector cover.

Using the tip of a spudger, pry the sim card reader flex out of its socket on the logic board.

Using a screwdriver, remove the three screws securing it down.

Two 1.4 mm screws

One 1.1 mm screw

Using tweezers or your fingers, remove the Taptic Engine cable connector bracket.

Using a screwdriver, remove the final 2.82 mm long standoff screw holding the sim card reader down.

Using tweezers or your fingers, remove the SIM card reader.

Using the tip of a spudger, pry the taptic engine cable connector out of its socket on the logic board.

Using a screwdriver, remove the three screws securing the taptic engine.

Two 2.8 mm long standoff screws

One 1.8 mm Phillips screw

Using tweezers or your fingers, remove the taptic engine.

The battery is secured to the case with four stretch-release-adhesives, you'll need to remove these in order to remove the battery.

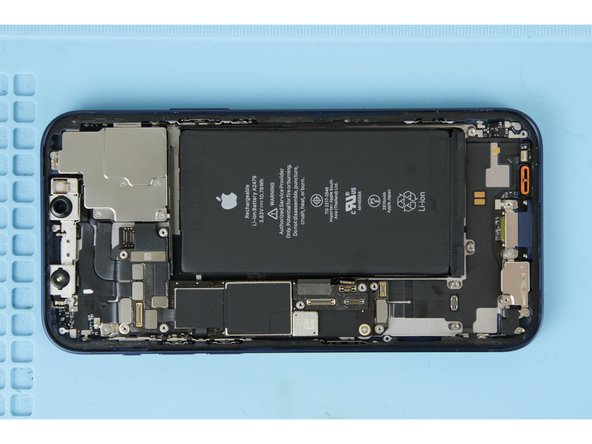

Two of the adhesives are located on the bottom edge of the battery and the other two are located on the top edge. Each individual adhesive has a black pull tab at the end, which is lightly stuck to the edge of the battery.

When the adhesives are stretched they lose their stickiness, in the next few steps we'll demonstrate how to properly remove these strips with ease.

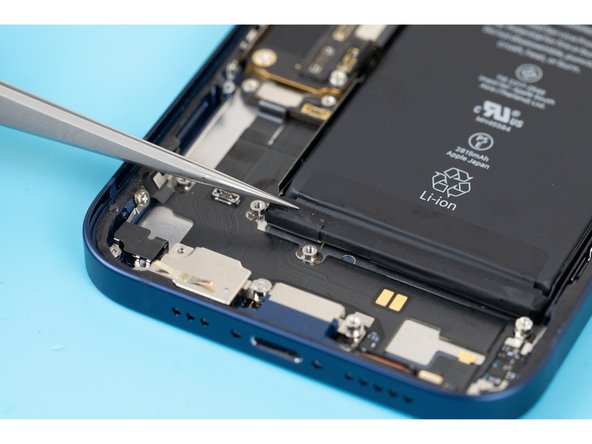

Using tweezers, pull down the first stretch release adhesive pull tab.

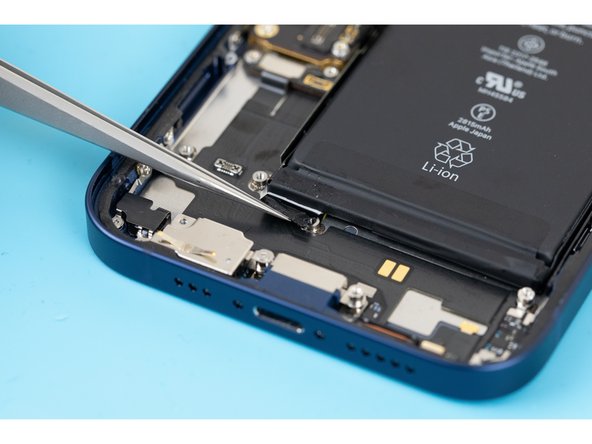

Caution: Don't jab the battery with any sharp tools. A punctured battery may leak dangerous chemicals or catch fire.

Do the same for the second adhesive pull tab next to the one you've just removed.

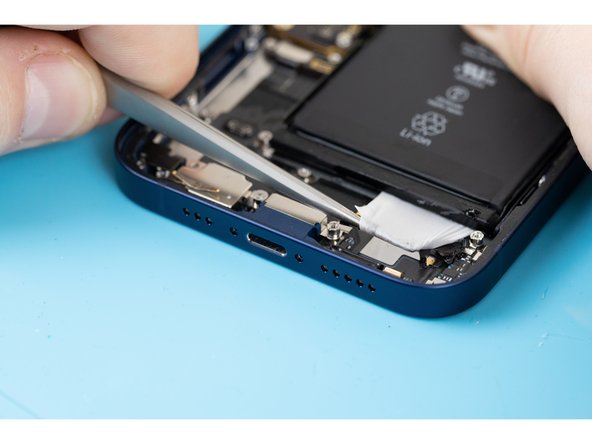

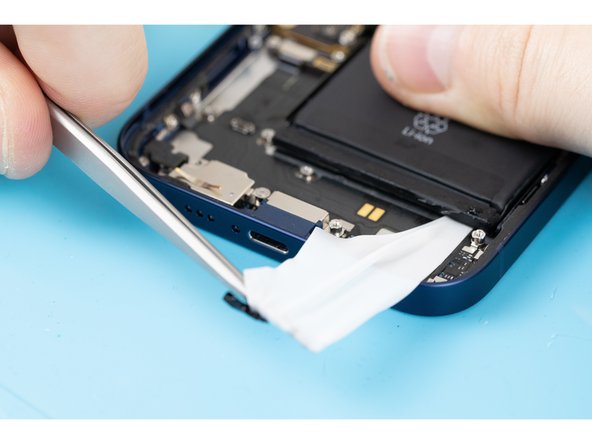

Using a tweezers, slowly pull the adhesive out from under the battery.

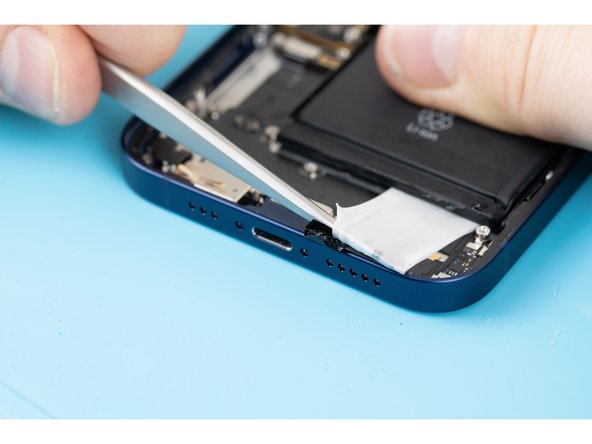

Apply enough tension for the adhesive to begin unsticking, but don't pull too hard that it rips.

For the best grip on the adhesive, keep twisting the adhesive onto the tweezers, that way the pressure you're applying will remain consistent/even across the adhesive.

Hold the iPhone by it's sides rather than pressing on the battery.

Pull the strip away at a low angle so the strip doesn't snag on the edge of the battery.

If the adhesive strip does break off, use a tweezers or your fingers to try and retrieve it. It's important not to try and retrieve it by prying underneath the battery.

If any of the adhesive strips break off underneath the battery and can't be retrieved, try to remove the other strips.

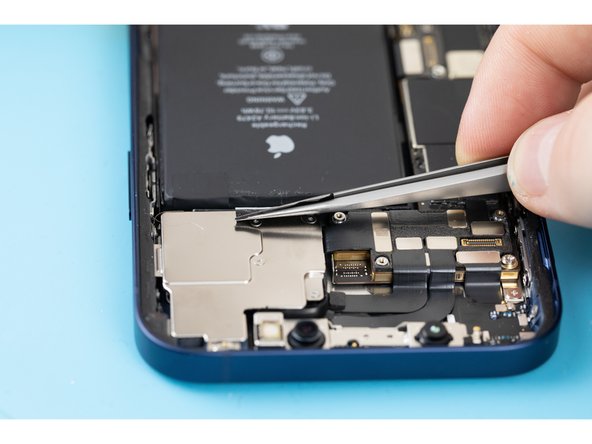

Pull down the adhesive tabs at the top of the battery.

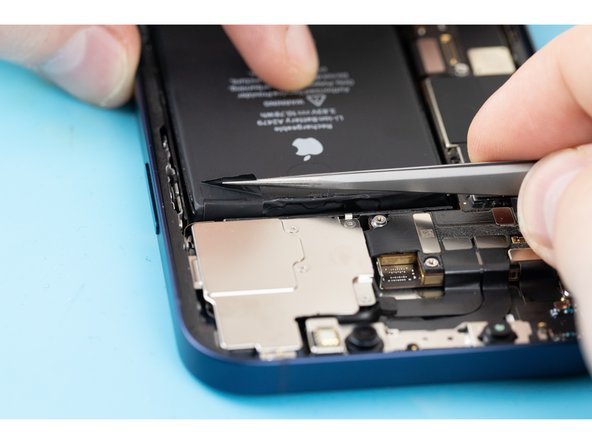

Using the same method as the previous step, remove the remaining adhesive strips.

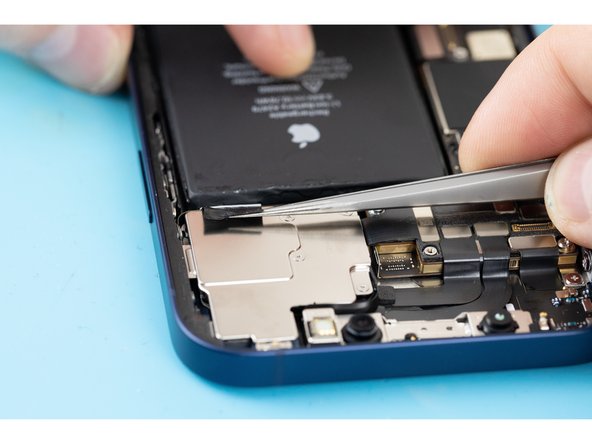

Be careful not to fling the battery from the iPhone as the final adhesive strip comes out.

If you've successfully removed all of the adhesive strips, skip the next step. If you haven't been successful, continue with the next step.

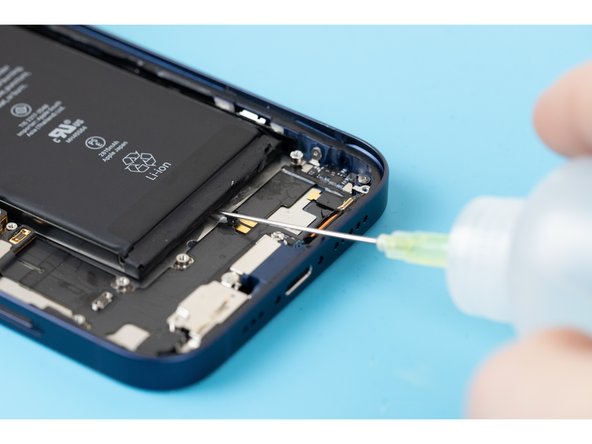

If you're unable to remove the battery, apply some IPA underneath the battery. This will help weaken the adhesive.

Wait for about a minute to allow the IPA to do its magic.

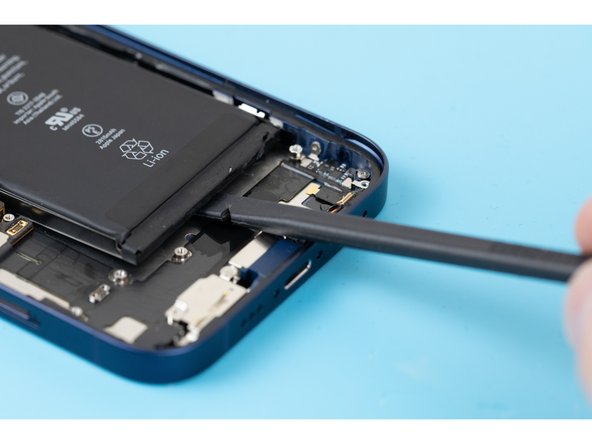

Gently lift the battery using a spudger.

If you're still struggling to pry the battery away with the spudger, apply some more IPA until you start to feel it loosen. Don't try to forcefully lever the battery out. Make sure you don't deform or puncture the battery with your pry tool.

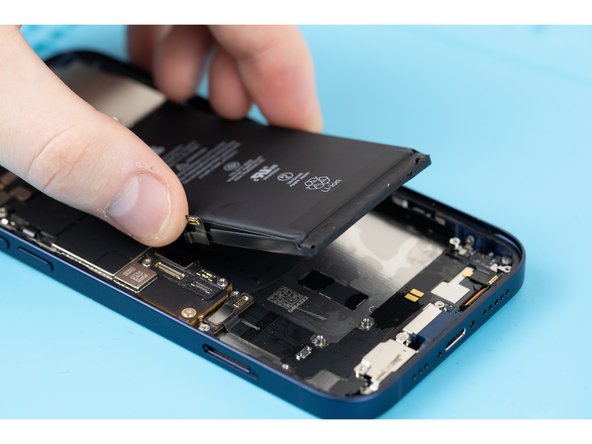

Remove the battery using your fingers.

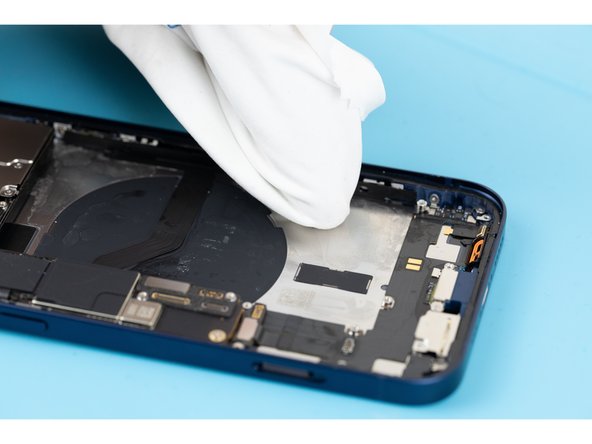

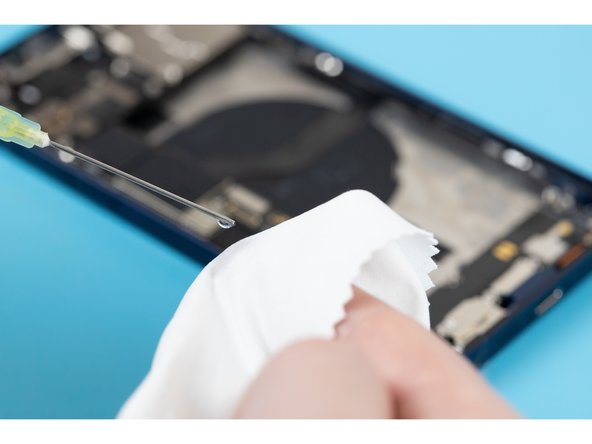

Apply the IPA to a clean cloth and wipe down the inside of the phone where the battery had previously been sat.

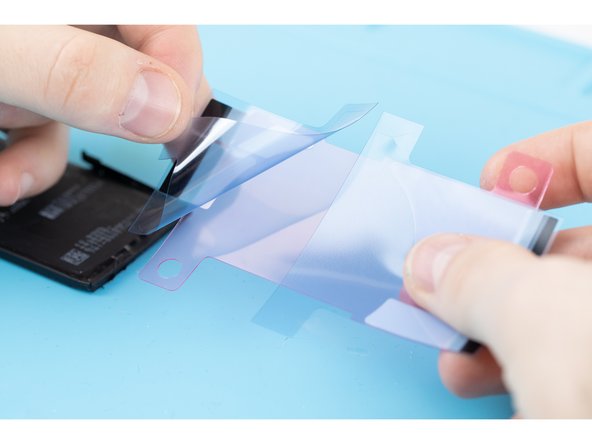

Peel the first protective liner of the adhesive away.

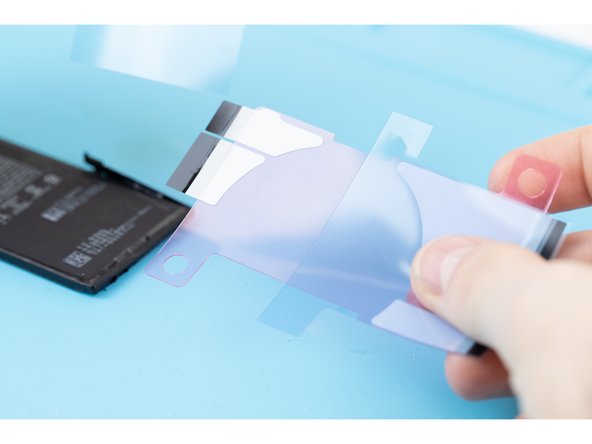

Once the adhesive is exposed, be careful not to get it dusty/dirty.

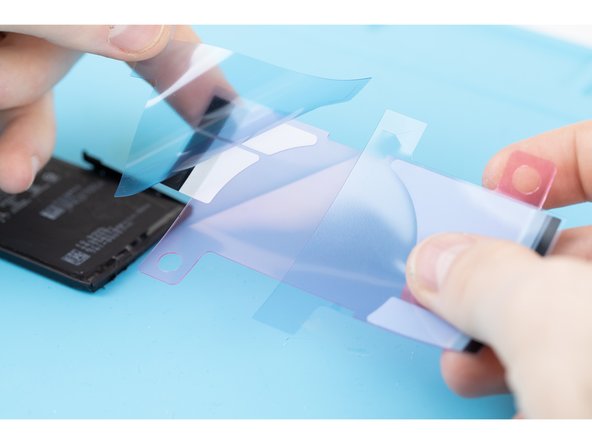

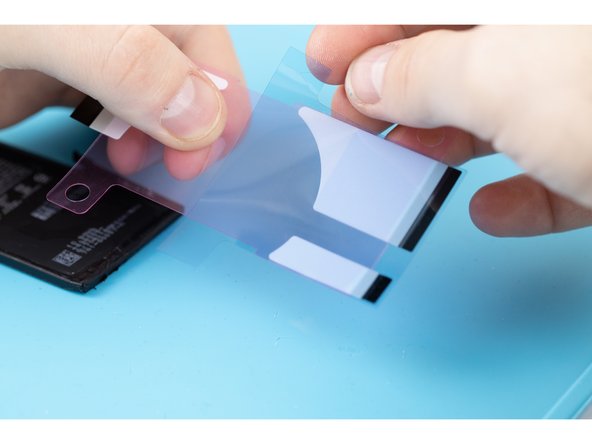

Peel the second protective liner of the adhesive away.

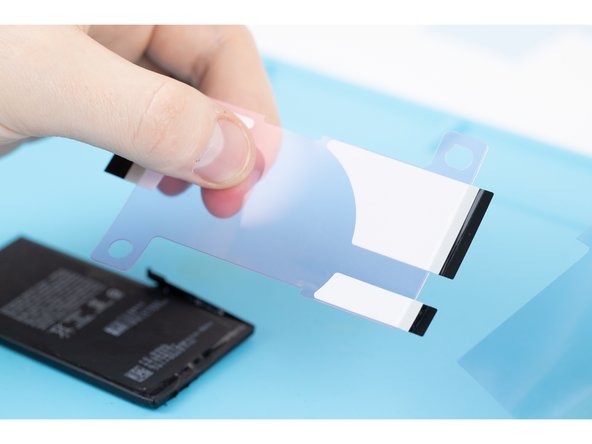

Once the adhesive is exposed, be careful not to get it dusty/dirty.

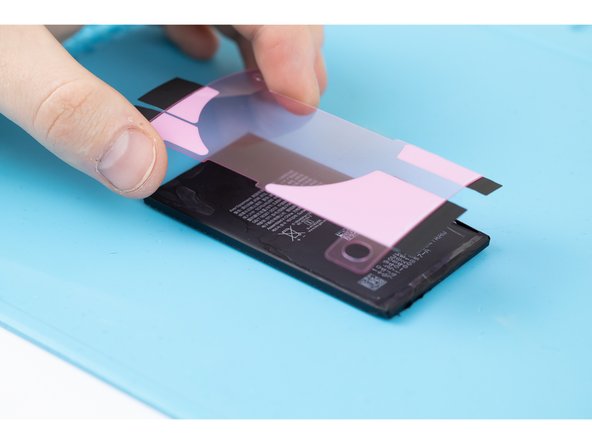

Grab your new battery, line up the adhesives and slowly stick them down to the back side of the battery.

We're using the same battery we removed earlier as this is for training purposes.

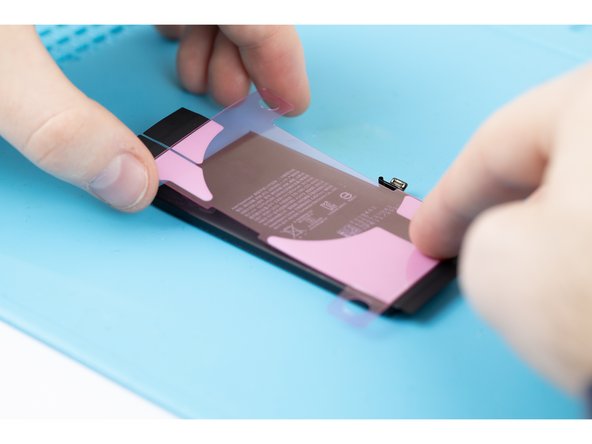

Once the adhesive is suck to the battery, you won't be able to re-position it.

Make sure the two shorter strips are nearest to the battery cable connector.

Center the strips so that the two pairs of black tabs protrude evenly from each side of the battery.

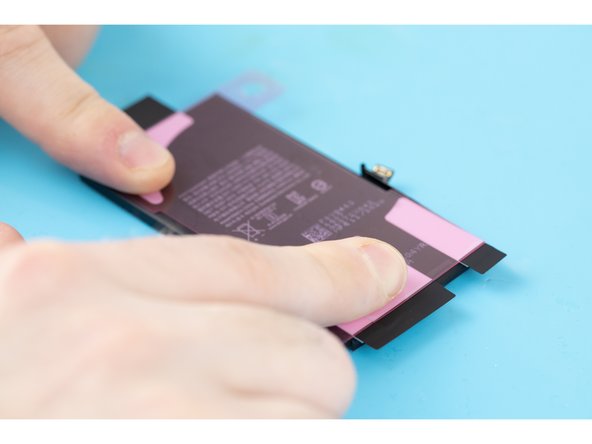

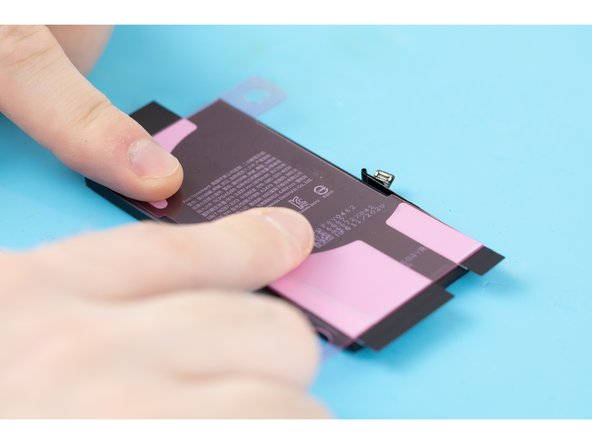

Using your fingers, firmly press the adhesive strips into place.

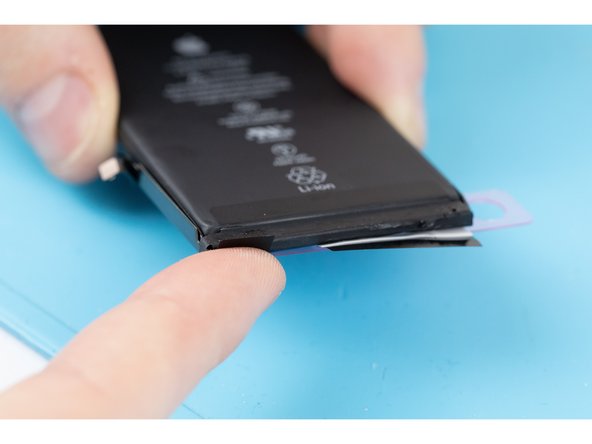

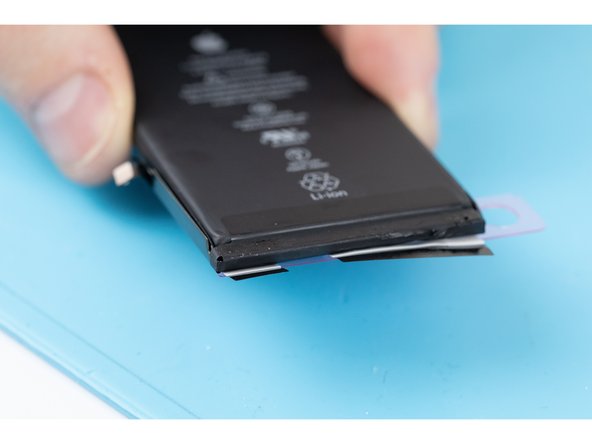

Using your finger, press the black tabs into place. Do this for every black tab.

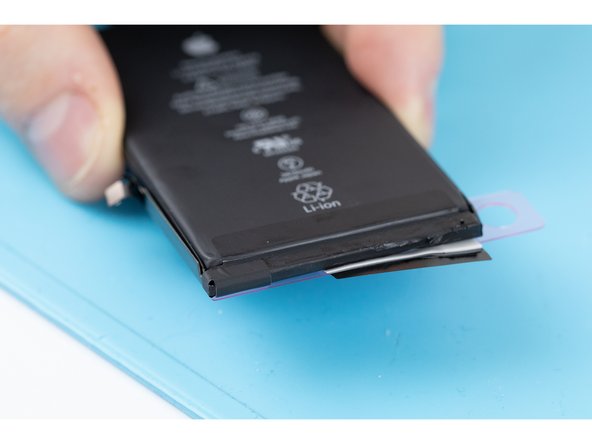

Before continuing to the next steps, follow steps 26 to 15 backwards to reassemble your iPhone

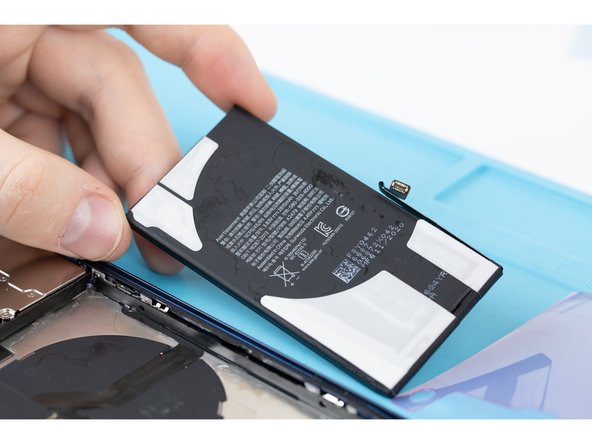

Peel away the final large liner to expose the adhesives.

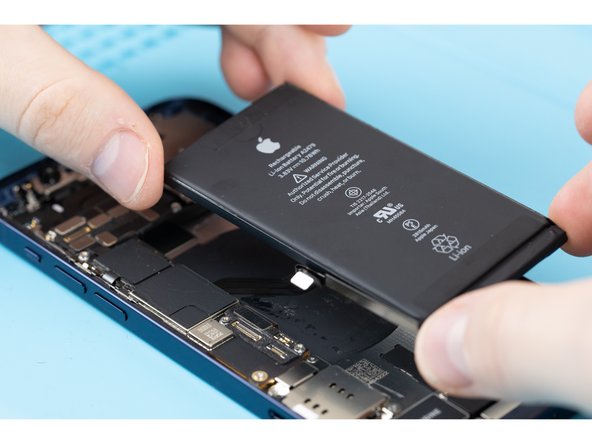

Carefully position the battery and place it into the phone.

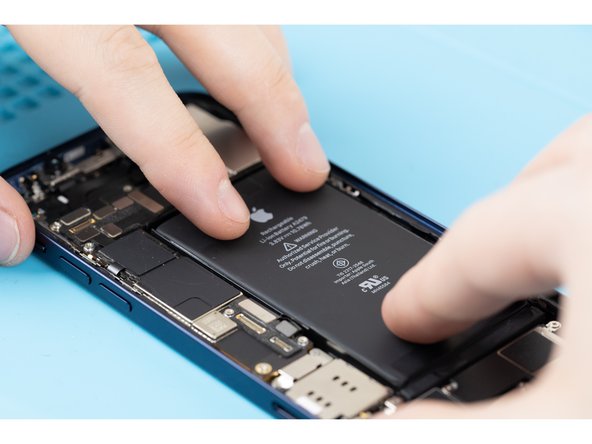

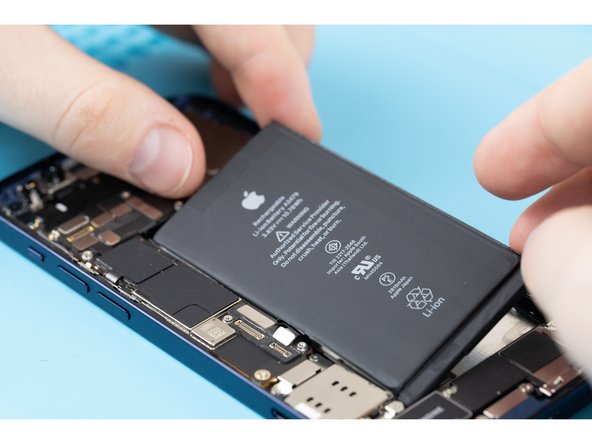

Firmly press the top and bottom of the battery into place. This will help the adhesives stick to the rear case.

Refer to our iPhone 12 Screen Replacement Guide to re-fit your screen with a waterproof adhesive.

Once you've turned your phone on with your new battery fitted, you may get an error message warning about the genuineness *of the battery even if you're using an original apple part. If your iPhone is functioning normally, you can safely ignore the warning.

To get the most out of your new battery you'll need to calibrate it. Charge your battery to 100% and continue charging it for a further two hours. Then use your iPhone until it turns off due to low battery, then charge it to 100%.
