Introduction
This guide demonstrates how to create a guide page.
-
-
Click on your username on the right side of the site header.
-
Select Create A Page from the drop-down menu.
-
If you are already on the category page for the new guide, click on the Create a Guide button at the top of the page.
-
-
-
Click on the Guide icon in the Start a New Page options.
-
To organize your guide, enter the name of the guide's designated category.
-
As you type, if the category already exists, it will appear in a drop-down list below the text box. Select your category from the list.
-
If the category does not already exist, a new category page will be created.
-
Click on the Next button.
-
-
-

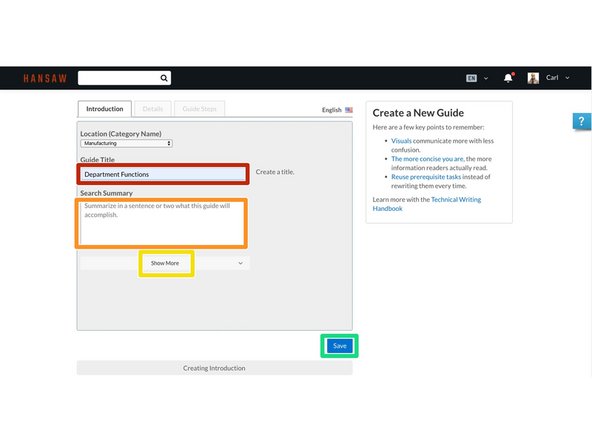

Enter a Title for your new guide.
-
Add a summary to briefly explain what the guide will demonstrate.
-
If you would like to add other information at this time, such as an introduction or flags, click Show More.
-
Review the Parts of a Guide Page to better understand the various elements that make up a guide.
-
When finished adding information, click Save.
-
-
-

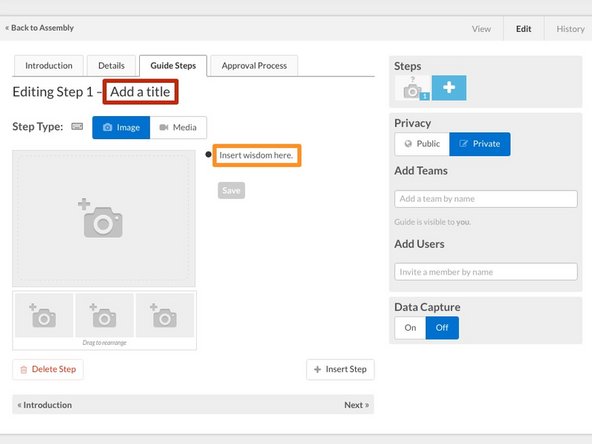

Begin creating the body of your guide by creating your first guide step.
-

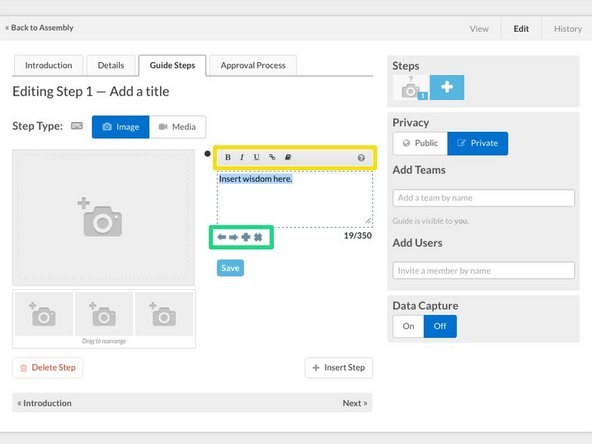

Click on the Add a Title text to enter a title for your first step.
-

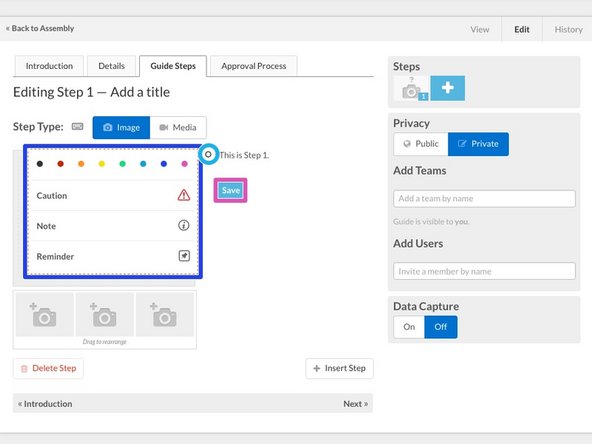

Click on the Insert wisdom here text to enter your first bullet point text instructions.
-
Use the formatting toolbar at the top of the text editing box to format your text or add links.
-
Use the arrows below the text box to indent your bullet. Use the + icon to create a new bullet and the X icon to delete the bullet.
-
To change the color or icon for the bullet, click on the bullet icon.
-
Select from the color/icon menu to change your bullet point.
-
Click Save to create your first step!
-
-
-

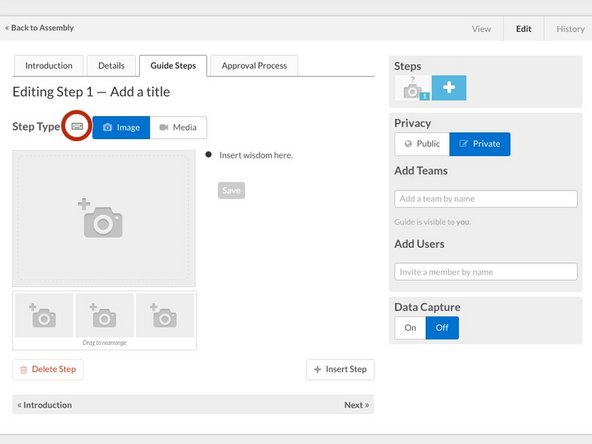

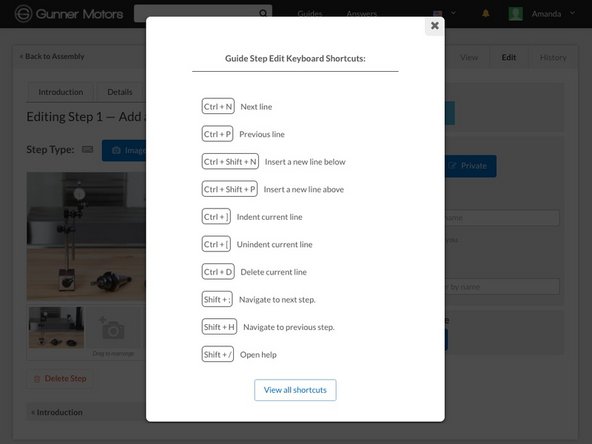

To open a Keyboard Shortcuts pop-up window, click on the keyboard icon at the top of the guide.
-
Use these (and others listed in the KeyBoard Shortcuts window) to quickly navigate while creating guide steps:
-
Return: Next bullet or insert new bullet.
-
Shift + Return: Previous Bullet or Insert Bullet Above.
-
Ctrl + ]: Indent bullet.
-
Ctrl + [: Unindent bullet.
-
Ctrl + D: Delete bullet.
-
-
-

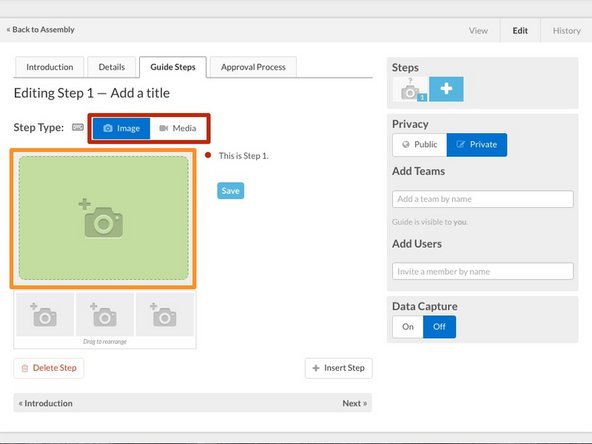

To add enhancing images or media, select either Image or Media. Both are located below the step title.
-
You can add up to three images per step, while video and other media is limited to one file per step.
-

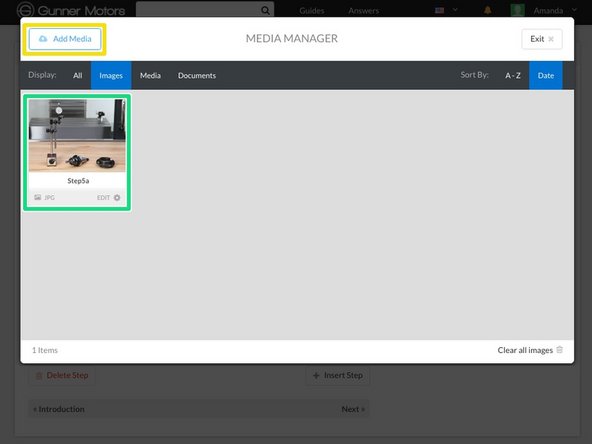

Click the image or media placeholder to open the Media Manager.
-
Click on the Add Media button to add a new image or video to your library.
-
Review the Media Manager Help Page for more information about using media.
-
Select the image or media file from your library by clicking on it. This adds it to your guide step.
-
If you are using images, you can use the two remaining image placeholders to add up to three images to your step.
-
Click Save to save your visual guide step.
-
-
-
Note: Markup cannot be added to videos or other media.
-

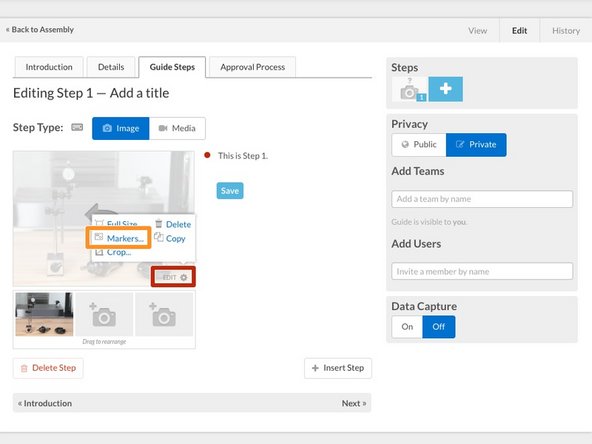

Move your curser over your new guide step image, then click on the Edit button in the bottom-right corner.
-

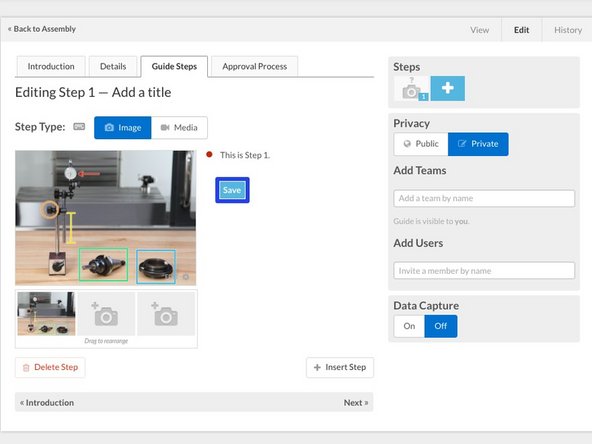

To open the Markup Window, select the Markers option from the menu.
-

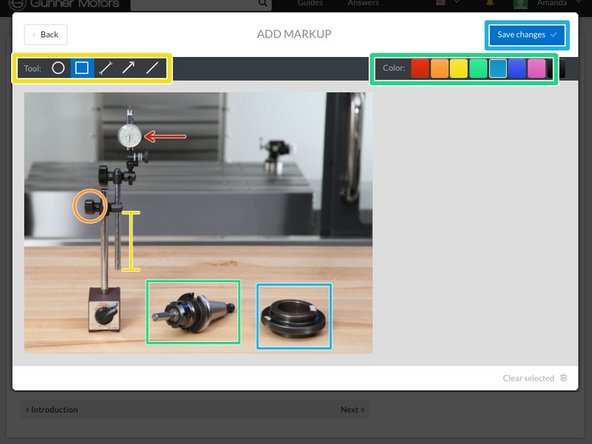

Use the Tool menu in the top-left of the Markup Window to select a shape, line or arrow marker.
-
Click the image where you want to place the marker and adjust the size, shape, and orientation as needed.
-
Use the Color menu in the top-right of the Markup Window to select a color for your new marker.
-
Once you have created all of the markers, click on the Save Changes button in the very top-right corner of the Markup Window.
-
View your new image with the markup and click Save to save it to your guide step.
-
-
-

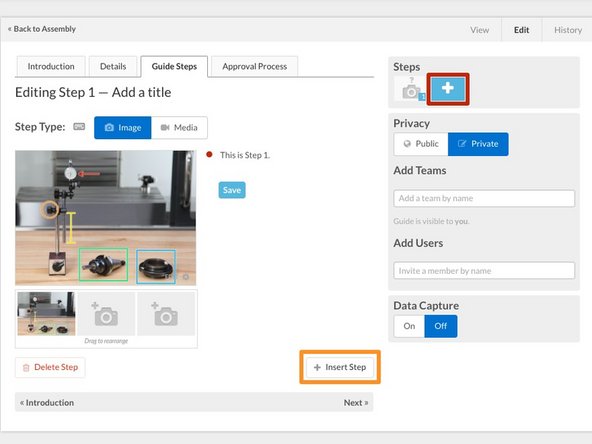

To add a new step, click the + icon in the top-right corner (Step section) of the page. This option will add a new step to the end of the guide.
-
You can also use the + Insert Step button to add a new step immediately after the step you are currently editing, rather than at the end of the guide.
-
-
-

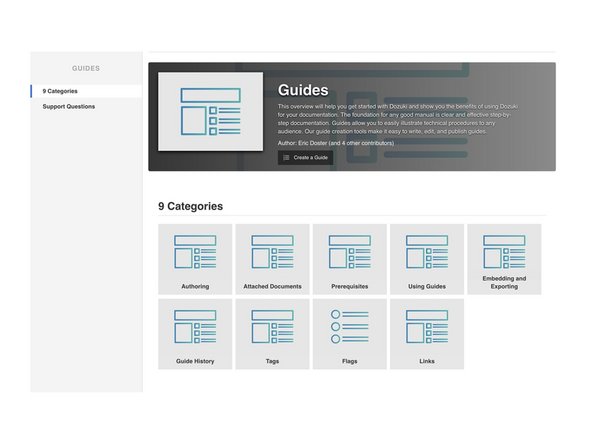

Review the '"Parts of a Guide Page" to add further detail to your guide.
-
Use the Help Guides to review specific topics, including:
-
-
-
-
-
