Introduction

In this short guide we’ll be explaining how to change the cutting gears on your Forward Zero machine. You’ll need to do this if you have a variety of different FORWARD products.

  1. The type of product you need to cut will determine what cut depth you need to set. You have the choice of 10 different cut depths located on a rotatable dial on the blade holder. Gear 10 is the most protruded the blade will be and gear 1 is the least protruded. Gear 10 is the most protruded the blade will be and gear 1 is the least protruded.
    • The type of product you need to cut will determine what cut depth you need to set. You have the choice of 10 different cut depths located on a rotatable dial on the blade holder.

    • Gear 10 is the most protruded the blade will be and gear 1 is the least protruded.

  2. If you aren’t sure which gear to set your blade to then you can follow this handy table we've created.
    • If you aren’t sure which gear to set your blade to then you can follow this handy table we've created.

    • We’ve also supplied it as a printable pdf so you can stick it up on the wall next to your Forward Zero machine! Find the printable pdf at the bottom of this guide in 'Attached Documents'.

  3. Twist the dial to your desired gear. You can now resume using your Forward Zero machine and cut your product.

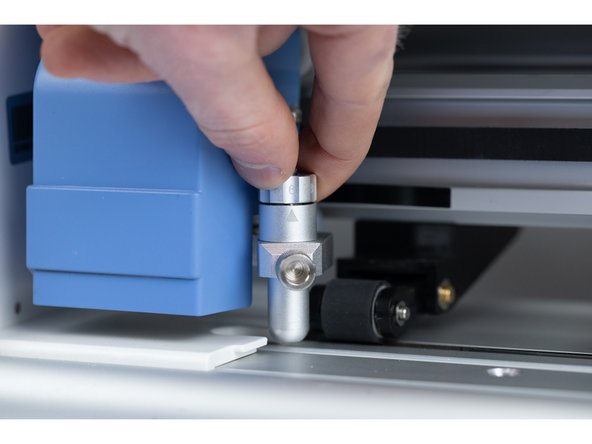

    • Twist the dial to your desired gear.

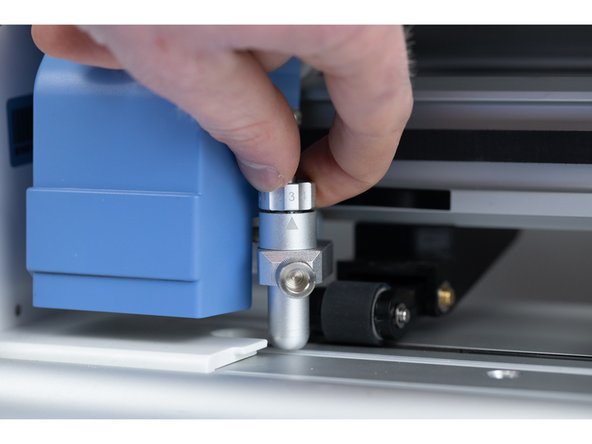

    • You can now resume using your Forward Zero machine and cut your product.

Finish Line

Attached Documents
